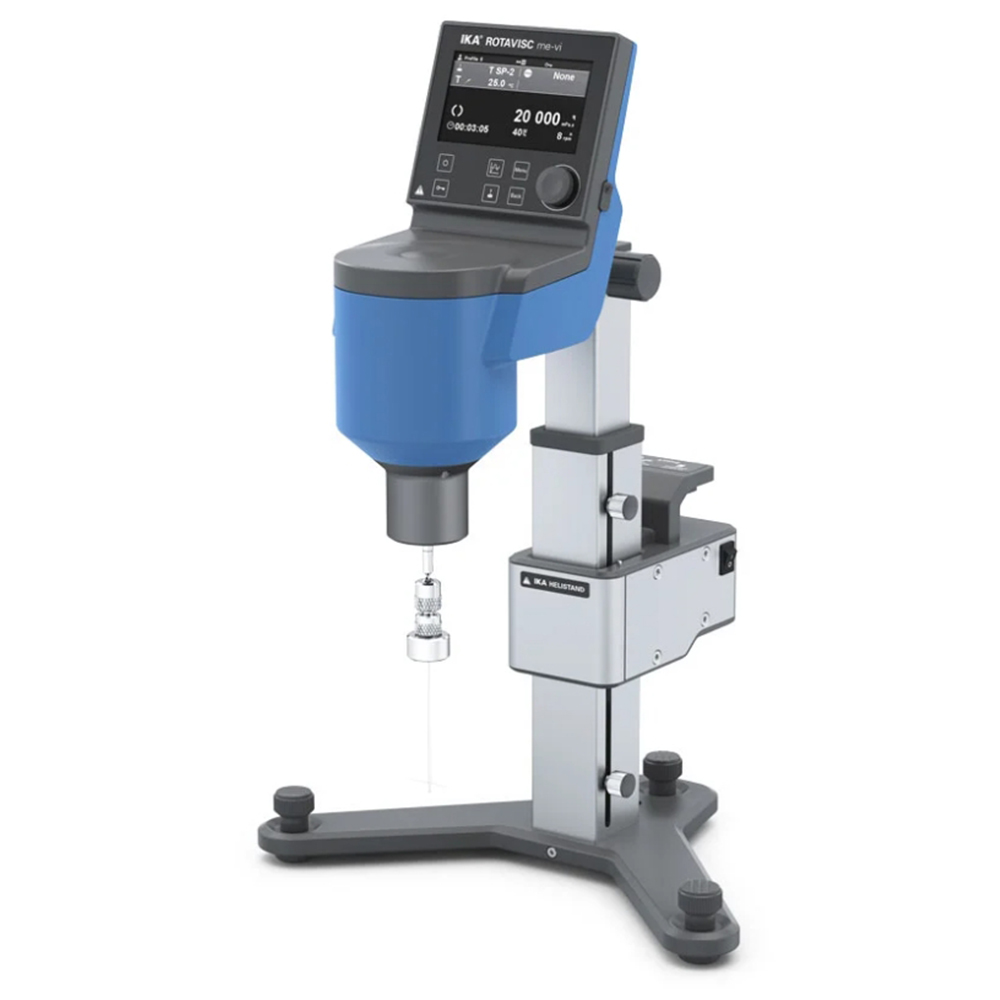

Rotavisc Viscosimeter ME-VI-HELI
The new ROTAVISC series determines the viscosity of liquids in all areas of application from laboratory to quality control. The four models measure viscosity in different ranges. Regardless of a simple or more complex viscosity measurement – the ROTAVISC delivers fast and accurate results. The supply includes a set of standard impellers, a temperature sensor, a quick connector, a hook connector and a ROTASTAND holder.
The 4.3 ”TFT display allows intuitive menu guidance. To position the viscometer level, there is a guide via the display. It is possible to simplify repetitive tasks through the ramps function.
the accuracy level of the ROTAVISC viscometer both for Newtonian liquids which is not +/- 1% in the measurement range. Reproducibility is +/- 0.2%.
ROTAVISC is a viscometer that offers continuous speed regulation. Advanced packages include labworldsoft® 6 Visc software
to combine and control multiple devices.
TECHNICAL SPECIFICATIONS
• Motorized stand
• Measurement range: 100 – 40 000 000 mPas
• Sensitivity: 1%
• Viscosity accuracy: 1%
• Viscosity repeatability: 0.2%
• Display: TFT 4.3 ”
• Motor rated power: 4.8 W
• Min. Working temperature: -100 ° C | Max .: +300 ° C
• Speed: 0.01 – 200 rpm
• Speed setting accuracy: 0.01 rpm
• Temperature setting resolution: 0.1 K
• Connection for external thermometer: PT 100
• Graphic function: Yes
• Calibration option: Yes
• Touch function: Yes
• Overload protection: Yes
• Operating mode: Timer and continuous operation
• Attachment on stand: Extension arm
• Interface: USB, RS 232, Analog output
• Weight: 7.1 kg
• Dimensions (W × H × D): 351 x 629 x 372 mm
• Permitted ambient temperature: 5 – 40 ° C
• Permitted relative humidity: 50%
• Voltage: 100 – 240 V
• Frequency: 50/60 Hz
• Power supply: 24 W,
• Standby: 0.06 W
• Protection class according to DIN EN 60529: IP 40
| Code | Model | Reproducibility | Viscosity range | Speed | External dimensions | Power | Voltage | Weight |
|---|---|---|---|---|---|---|---|---|
| GT2629 | ROTAVISC ME-VI-HELI | 0.2 % | 100 – 40 000 000 mPas | 0.01 – 200 rpm | 351x629x372 mm | 4.8 W | 100 – 240 V 50/60 Hz | 7,1 kg |
