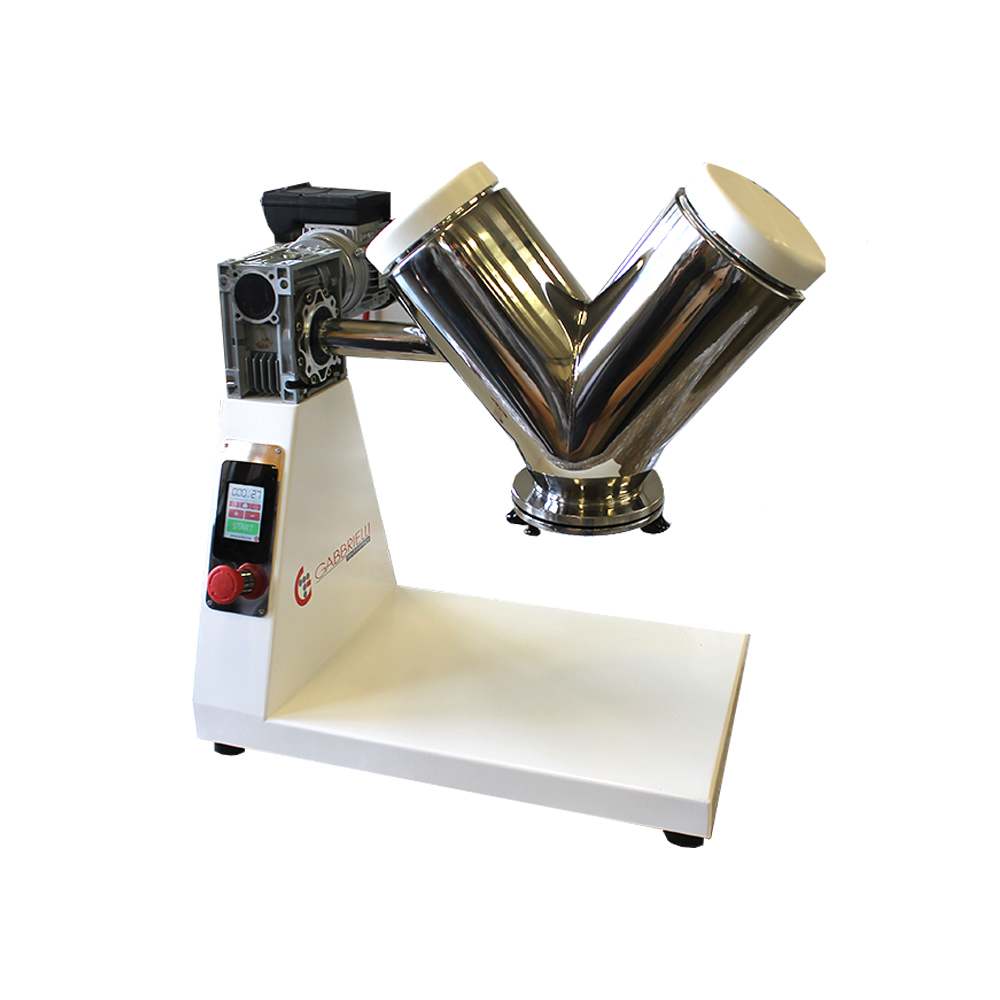

V-Mixer
The V-MIXER shaped laboratory are suitables for homogenizing products in granules and powder in ceramics, chemical, pharmaceutical, food industry. Consists of two tubes with lids V in silicone and a gate valve to discharge the material worked. Through a mechanical transmission, the product within these tubes V rotates 360 ° to achieve a uniform mixing. The tubes are designed to V without corners to facilitate the sliding of the product inside. Both inner and outer sides of the tubes in V are in stainless steel AISI-304 mirror polished (on request at time of order may also be constructed of stainless steel AISI-316). Composed by a motor, timer, start / stop switch and safety device against short-circuit. The capacity utilization is approximately 50% of the total volume. Available in 0,5 – 1 – 2 – 4 -8 lt
TECHNICAL SPECIFICATIONS
• V-Mixer body entirely in AISI-304
• Gearmotor
• Switch ON-OFF
• Timer 0 – 60 min
• Volt.: 220 -240 Volt . 50/60 hz single phase
EQUIPMENT
• Electric cable supply
• N° 2 silicon cover
| Code | Model | Total capacity | External dimensions | Power | Weight |
|---|---|---|---|---|---|
| GT1545 | VMIX-8 | 8 lt | 600x400x700 mm | 80 W | 20 Kg |
| GT1544 | VMIX-4 | 4 lt | 500x400x605 mm | 80 W | 18 Kg |
| GT1543 | VMIX-2 | 2 lt | 415x400x445 mm | 80 W | 16 Kg |
| GT1542 | VMIX -1 | 1 lt | 415x400x315 mm | 80 W | 14 Kg |
| GT1541 | VMIX-0,5 | 0.5 lt | 415x400x315 mm | 80 W | 13 Kg |
