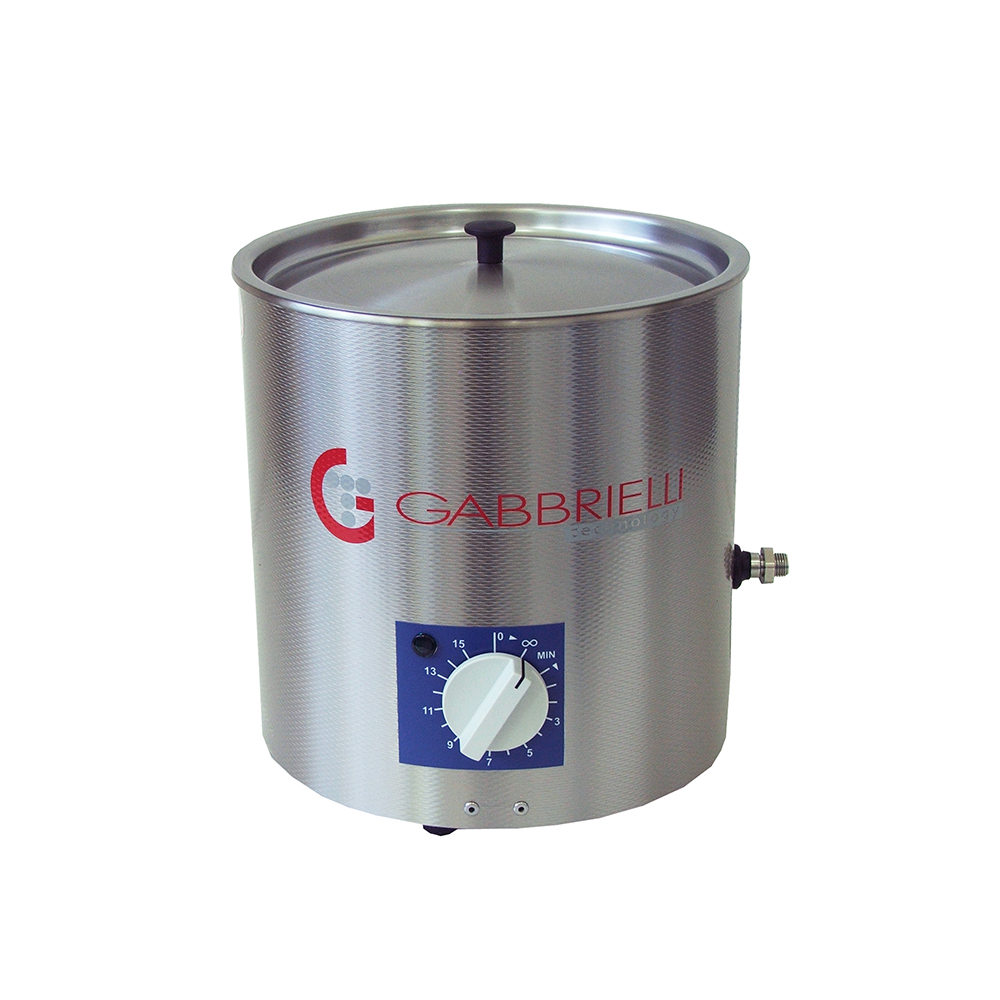

Ultrasonic Cleaning UC-6
Categories
GranulometryStandards
High power ultrasonic cleaning of test sieves, stainless steel grinding balls, jars and alumina balls charge, glass and ceramic instruments, etc.
TECHNICAL SPECIFICATIONS
• Steel structure all stainless steel
• Capacity: 5,6 lt
• Inner tank dimensions: Ø 240×130 mm
• Max sieves diameter: Ø 203 mm / 8”
• Filling volume for cleaning: 4,0 lt
• Cleaning time for 2 sieves: 2 min
• Timer: 0 – 15 min and continuos operations
• Frequency: 35 kHz with automatic control
• Operating mode: fullwave
• Installed power: 240 W
• Voltage: 240 – 50/60 Hz – 1 phase
• Protection: IP 32
EQUIPMENT
• Cover
• Ball cock 1/4 “ for outlet
• Stainless steel basket for sieves
| Code | Model | ISO 3310 | External dimensions | Weight |
|---|---|---|---|---|
| GT1031 | CLEANER UC-6 | UC-6 | Ø 265x270 mm | 6,4 kg |
| Code | Description | Image |
|---|---|---|

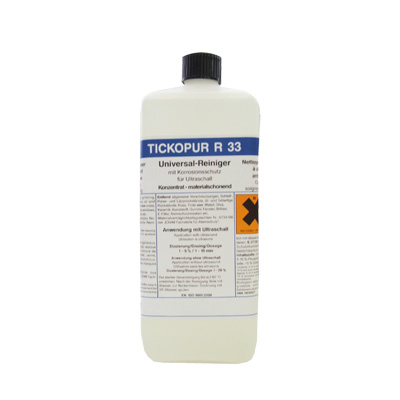

| GT0986 | Cleaning TICKOPUR - 5 lt. bottle | Open image |
