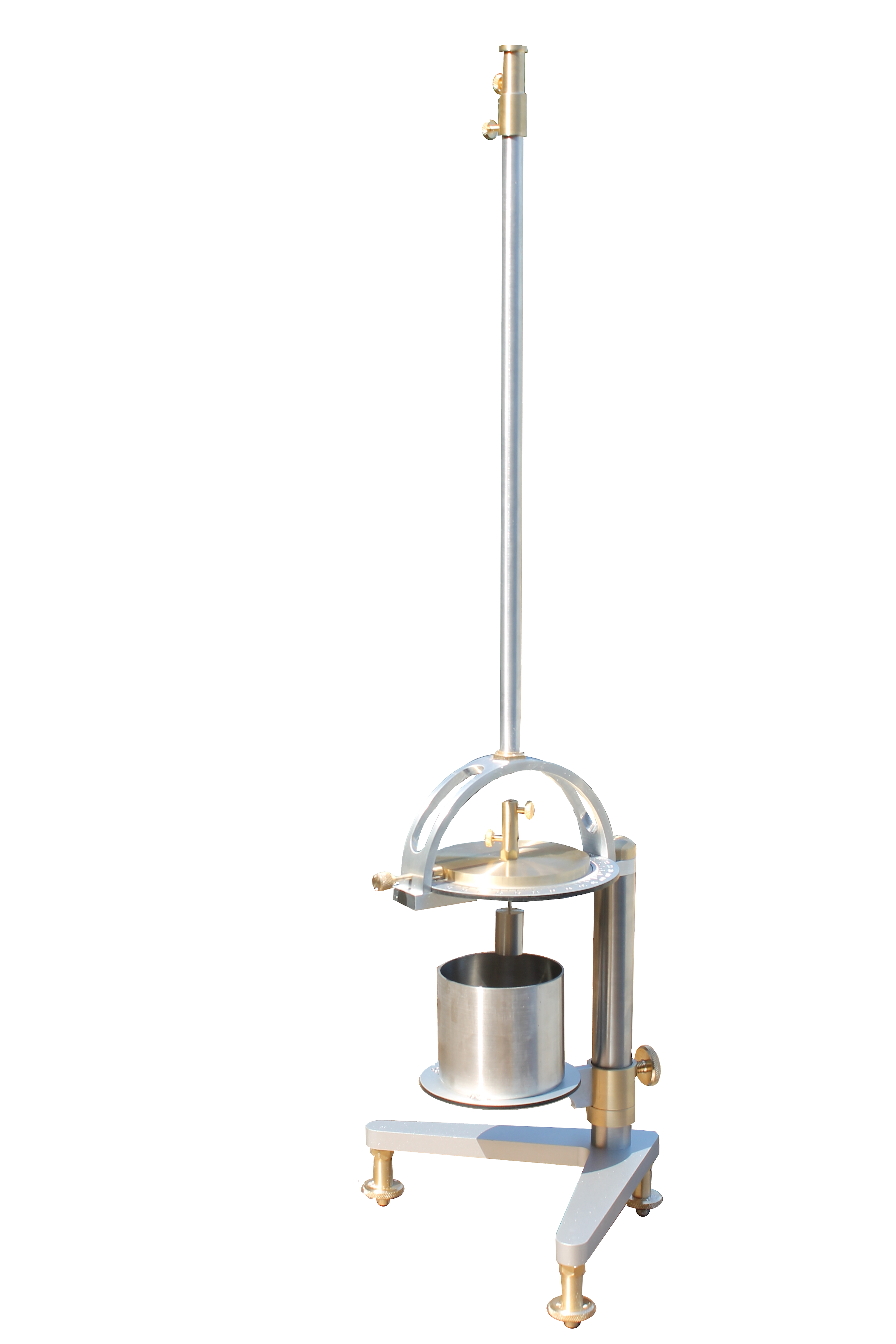

Torsion Viscometer Gallenkamp
Developed with the Ceramic Industry in mind, (but easily modified for other use), the Torsion Wire Viscometer is simple to use and
maintain. The machine has three levelling points for easy adjustment, a PTFE bearing and a unique sample table which is raised vertically or rotated horizontally into position. All accessories are fitted and adjustments easily made by means of the “brass thumb screws”. This principle removes the need for fiddly screwdrivers or allen keys. The standard model is supplied with a 30swg torsion wire, an 11/16” cylinder bob and a stainless steel sample cup.
TECHNICAL SPECIFICATIONS
• Made by aluminium base with three level points:
• Nr. 1 graduated disk
• Adjustable sample cup support
• Nr. 1 torsion wire and 1 cylinder
• Viscosity range approx: from 0,25 up to 1.000 poises
EQUIPMENT
• Nr. 1 torsion wire 30 swg
• Nr. 1 cylinder ø 11/16 ” (ø 17,5 mm)
• Nr. 1 sample cup ø 67×60 mm
• Nr. 1 Instruction manual and calibration curve
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT1115 | GALLENKAMP | 250x210x720 mm | 9,6 kg |
| Code | Description | Image |
|---|---|---|
| GT0889 | Sample cup ø 67x60 mm | |
| GT0890 | Cylinder ø 1”+1/8” “(ø 28,57 mm) | |
| GT0891 | Cylinder ø 1/4 “(ø 6,35 mm) | |
| GT0892 | Cylinder ø 1/2 ” (ø 12,7 mm) | |
| GT0893 | Cylinder ø 11/16 ” (ø 17,5 mm) | |
| GT0894 | Cylinder ø 1 + 5/8 ” (ø 41,27 mm) | |
| GT0895 | Torsion wire 24 swg | Open image |
| GT0896 | Torsion wire 26 swg | Open image |
| GT0897 | Torsion wire 28 swg | Open image |
| GT0898 | Torsion wire 30 swg | Open image |
| GT0899 | Torsion wire 32 swg | Open image |
| GT0900 | Torsion wire 34 swg | Open image |
| GT0901 | Torsion wire 36 swg | Open image |
