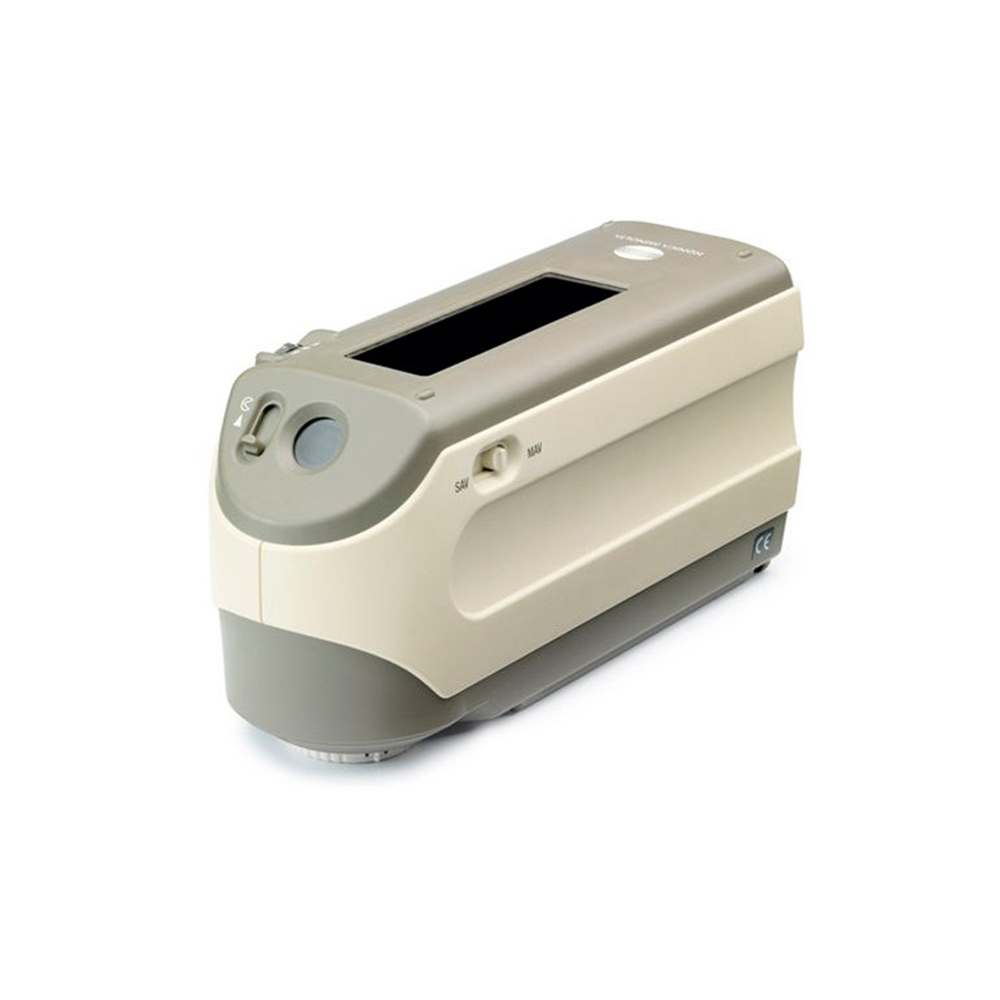

Spectrophotometer CM-2500 D
Portable instrument, compact. One hand is enough to hold to operate it by means Navigation Wheel guides you through all the menu options with great ease forward/backward and pressing down like using a PC mouse. The large display shows all the information you need, either complete graphical and numerical color information or a simple PASS / FAIL message.
TECHNICAL SPECIFICATIONS
• Geometry:d/0°(diffuse illumination / 8° viewing angle)
• Measuring area: Ø 8 mm
• Detector: Silicon photodiode array (dual 40 elements)
• Spectral separation device: Diffraction grating
• Wavelenght range: 360 nm to 740 nm
• Wavelenght pitch: 10 nm
• Half bandwidth: Approx. 10 nm
• Reflectance range: 0 to 175%; display resolution: 0.01%
• Light source: 2 pulsed xenon lamp
• Measurng time: reading 1,5 sec
• Minimum measurement interval: 3 seconds for SCI/SCE
• Measurement/illumination area: MAV: Ø 8 mm / Ø 11 mm
• Repeatibility (Standard deviation): Spectral Reflectance: within 0,1% (360 to 380 nm within 0,2%. Chromatricity Value: ΔE *ab 0,04 (When a white calibration plate is measured.03 times at 10 second intervals after white calibration)
• Measurement mode: Single/averaging (auto mode 3, 5, 8 flashes/manual mode)
• Interface: RS-232C
• Observer: 2°/10° CIE (CIE 1931:2°, CIE 1964:10°)
• Illuminant: CIE: A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (simultaneous evaluation is possible using two light sources)
• Outputs: Spectral value/graph, colorimetric value, color difference value/graph,PASS/FAIL result, value gloss relative
• Display range: 1,5-100% in reflectance
• Color space / colorimetric data: L*a*b*, L*C*h, CMC (1:1), CMC (2:1), CIE94, Hunter Lab, Yxy, Munsell, XYZ, MI, WI (ASTM E313)Y, I (ASTM E313/ASTM D1925), Brightness ISO (ISO 2470), Density status A /T, WI/Tint (CIE/Ganz),L99 a99 b99, L99 c99 h99
• Memory capability: 700 set data in mode “defined in COND.”
• Tolerance Display: tolerance for color difference (both box and elliptical tolerances can be set)
• Supply: AC adapter 230 VAC / 50-60 Hz
EQUIPMENT
• White calibrating plate, target mask Ø 8mm,RS-232C cable, AC adapter
• AA-size battery
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT1339 | SPECTRO CM - 2500 D | 193x69x96 mm | 670 gr |
| Code | Description | Image |
|---|---|---|
| GT1340 | Software lite USB |
