Slipperiness Dynamic Slip BCRA

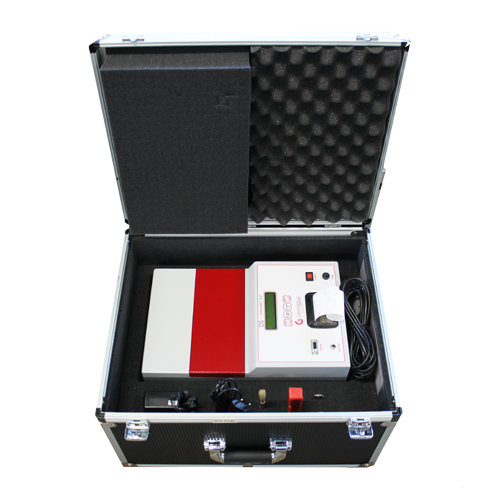

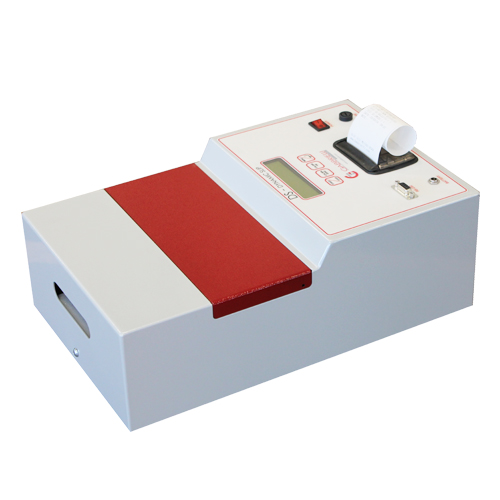

Instrument to determine the dynamic coefficient of friction COF manufacturer according to BCRA method. The instrument is a vehicle with 4 wheels composed by an aluminium chassis and a steel epoxi painted cover. A gear motor propelled by a battery Li-ION muve two wheels at 17 mm/s. The COF measure is acquired during the movement of the instrument by a slider Ø 9 mm (Four-S rubber or leather) in contact with testing surface. The vibration of the slider is transmitted to an LVDT sensor. The LVDT sensor converts the mechanical signal in a proportional electronic signal. The signal processed by an A/D microprocessor shows the medium coefficient of friction COF. At the test end the display LCD shows the medium value of COF obtained; it can be printed the diagram by on board printer.The instrument is supplied by software running in Windows XP/Vista 8/10 and RS-232 output to connect a PC.
Possibility to memorize up to 40 tests
TECHNICAL SPECIFICATIONS
• Electronic transducer LVDT with sensitivity of 800 mV/V/mm and accuracy of 0,3 %
• Software Data Collection
• Output RS – 232 to connection PC
• Electronic system with display for the instant read and average slipperiness (COF)
• Thermal printer for test report
• Programmable integration time from 1 up to 15 sec
• Supply: rechargeable Li-ion battery
• Adapter RS232-VSB
EQUIPMENT
• Nr. 3 Slider with leather
• Nr. 3 Slider with rubber (4S) Four-S
• Battery charger 230 VAC – 50/60 Hz
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT0809 | DYNAMIC SLIP BCRA | 450x370x190 mm | 30 W | 13,5 kg |
| Code | Description | Image |
|---|---|---|

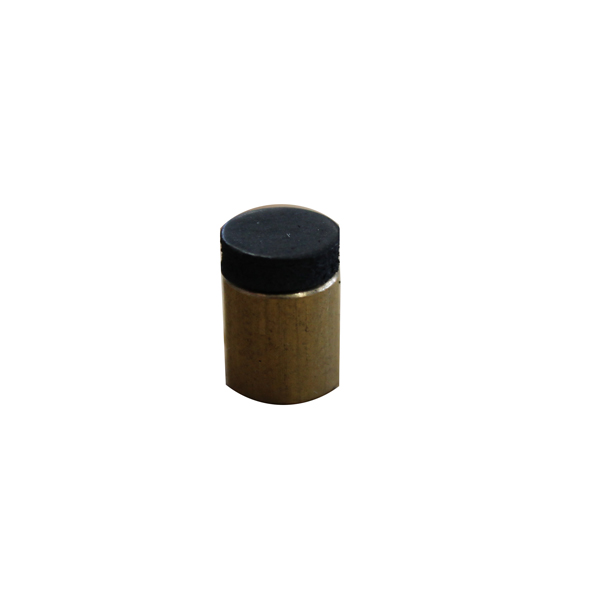

| GT0816 | Slider with rubber (4S) Four-S | Open image |

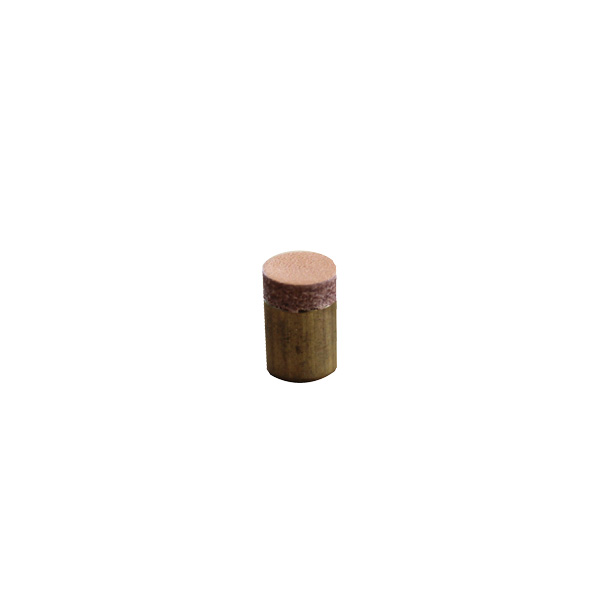

| GT0817 | Slider with leather | Open image |
| GT1168 | Packing of 20 thermal paper rolls for data processor (CM 400) | Open image |
