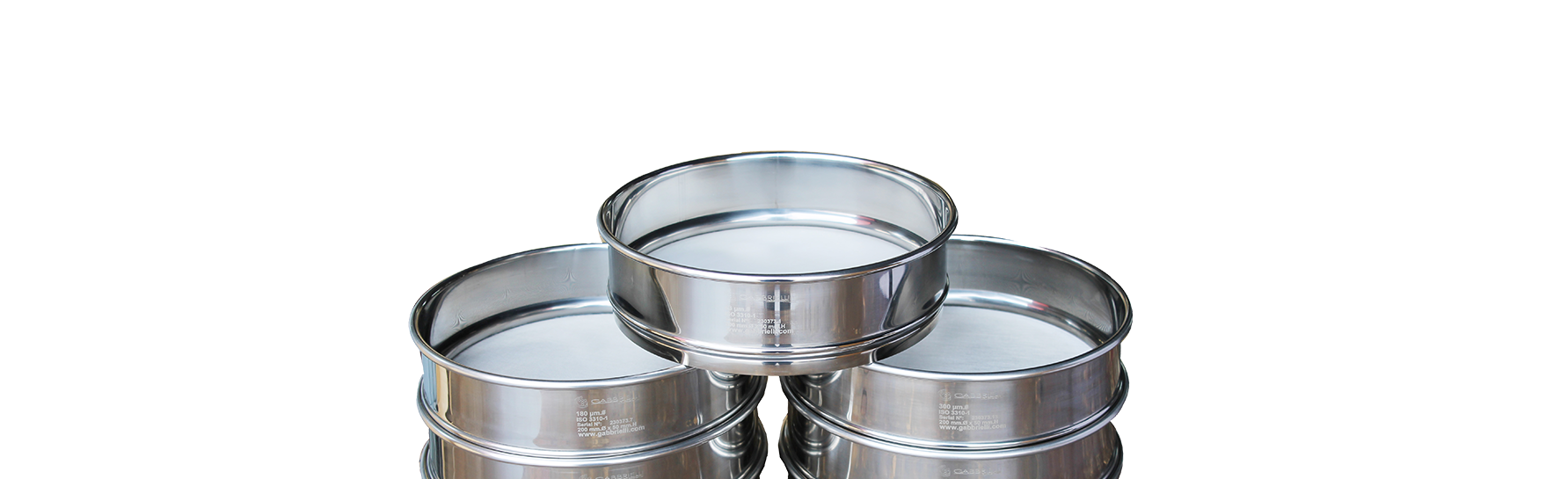

Set of Nr.7 Standard Sieves Ø 200 MM
Categories
GranulometryStainless steel sieves Ø 200mm x 50mm to determine the granulometry of a product by wet or dry sieving. Each sieve is marked with a serial number to ensure the traceability and delivered with a certificate of Conformity.
TECHNICAL SPECIFICATIONS
• All stainless steel made
• Cloth lock at high pression
• Useful height 50 mm
EQUIPMENTS
SET OF NO.7 SIEVES:
GT0463 – Sieve Ø 200 mm 63 μm
GT0469 – Sieve Ø 200 mm 125 μm
GT0472 – Sieve Ø 200 mm 180 μm
GT0475 – Sieve Ø 200 μ 250 μm
GT0476 – Sieve Ø 200 mm 300 μm
GT0481 – Sieve Ø 200 mm 425 μm
GT0483 – Sieve Ø 200 mm 600 μm
| Code | Model | OPENING FROM / TO | External dimensions | Weight |
|---|---|---|---|---|
| GT0452 | SERIES N.7 STANDARD SIEVES Ø 200 MM | 0,063 ÷ 0,600 μm | Ø 200 x 390 mm | 2800 gr |
| Code | Description | Image |
|---|---|---|
| GT0453 | Pan and cover for dry test | Open image |
| GT0454 | Pan and cover for wet test | Open image |
Related products
Shaker
Description:
Electromechanical bidimensional movements. The unit is able to detect, automatically, the size of the granules in a powder or a liquid dispersion by forcing the…
Category:
GranulometryStandard:
Electromechanical bidimensional movements. The unit is able to detect, automatically, the size of the granules in a powder or a liquid dispersion by forcing the substance through a set of sieves.
Shaker 3D
Description:
Electromagnetic sieve shaker with 3-D motion and intermittent digital control, very quiet, does not transmit vibrations to the environment. The sieving machine automatically determines the…
Category:
GranulometryStandard:
Electromagnetic sieve shaker with 3-D motion and intermittent digital control, very quiet, does not transmit vibrations to the environment. The sieving machine automatically determines the particle size of a dry powder or a liquid dispersion by sieving through a series of sieves.
Air Jet Shaker
Description:
Digital Air Jet Sieve Shaker for granulometric test of fine particles, from 5 μm to 2 mm, or samples with electrostatic charge.
Category:
GranulometryStandard:
Digital Air Jet Sieve Shaker for granulometric test of fine particles, from 5 μm to 2 mm, or samples with electrostatic charge.

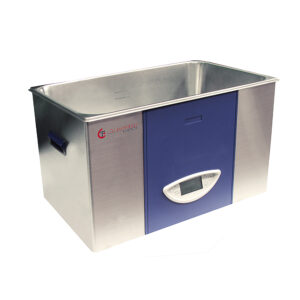

Ultrasonic Cleaning UC-6
