Roller Mill

Rotating cylinder machine to shutter britte and medium-hard materials such as clays, grogs, kaolins, etc. The thickness of material depends by fine rolls adjustment.

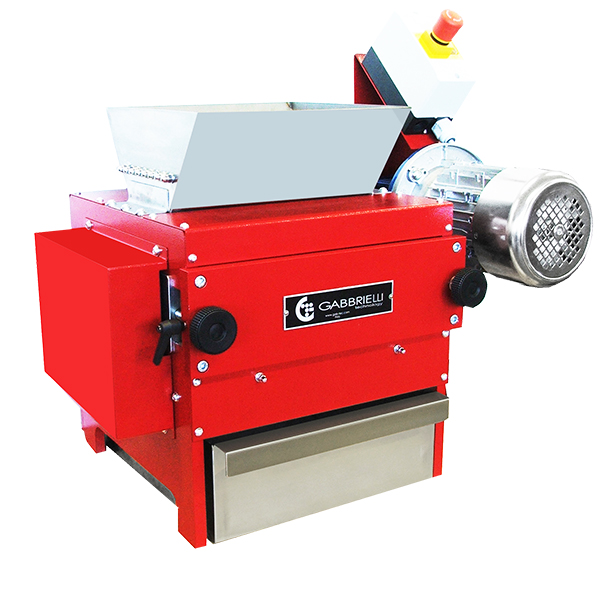

TECHNICAL SPECIFICATIONS FOR 120
• Steel structure epoxi painted
• N°1 gearmotor
• Hardness steel rollers Ø 120 mm
• Rotation speed ~756 RPM (other RPM on Demand)
• Shutter thickness fine adjustment (~ 0,1 ÷4 mm)

TECHNICAL SPECIFICATIONS FOR 195
• Steel structure epoxi painted
• N°2 indipendent gearmotor
• Hardness steel rollers Ø 195 mm. with indipendent motorization
• Rotating speed adjustable up to a maximum of 250 RPM
• Shutter thickness fine adjustment (~ 0 ,1• ÷4 mm)
• Supply: 400 V – 50 Hz three phases

Code Model External dimensions Power Weight ROLLS Ø
GT1480 ROLLER MILL 195 850x760x900 mm 2 kW 195 kg 195 mm
GT1243 ROLLER MILL 120 70x500x650 mm 0,75 kW 145 kg 120 mm
