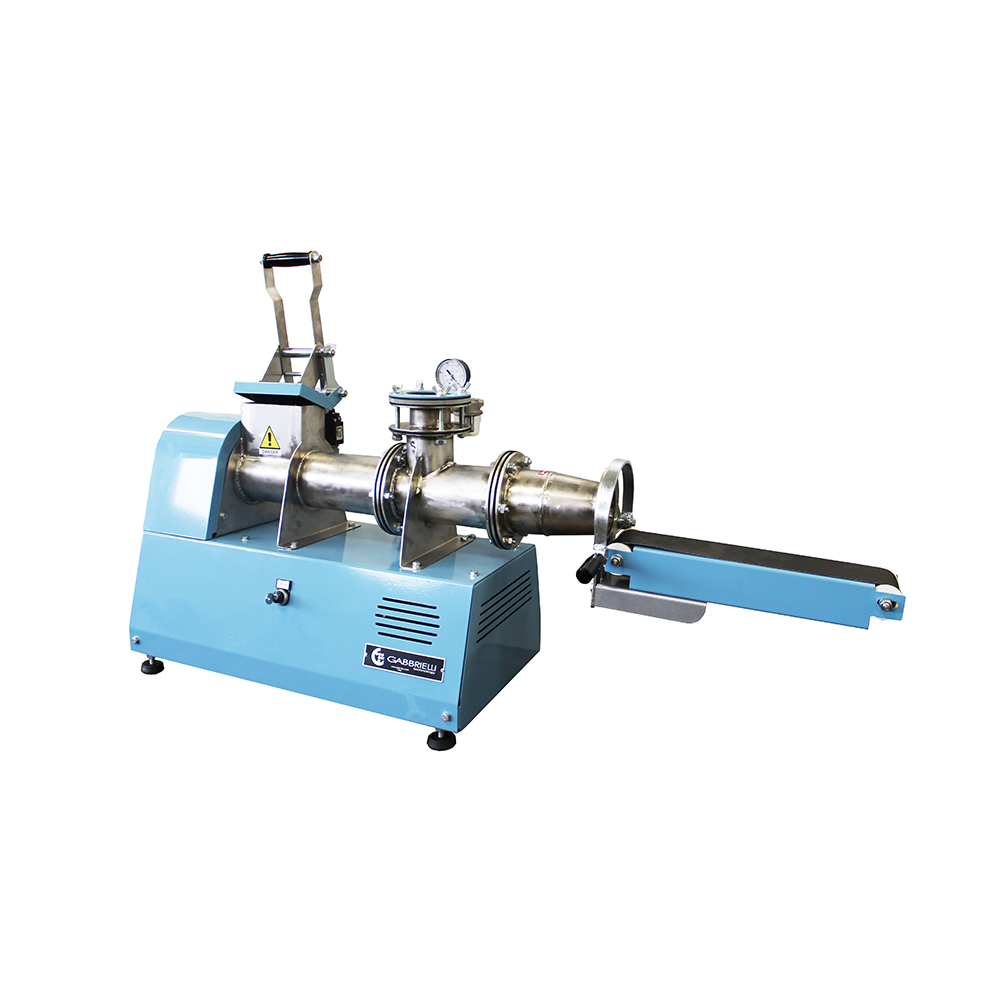

Pugmill PMV – 200 Extruder
Pug mill for clay body. Made of stainless steel AISI 304.It comes complete with manual cutter, slide support clay pug mill and vacuum pump oil. Die for extrusion of slug with dimension only on request
TECHNICAL SPECIFICATIONS
• Max output 200 Kg/h
• Slug diameter 93 mm
• Propeller diameter 93 mm
• Seam diameter. 85 mm
• Supply 230/50 Hz single phase
EQUIPMENT
• Wire – type manual cutter
• Guide to support the slug at the extruder exit 120×400 mm
• De-airing oil pump
• Connections
• Interception valve
• Filter
• Vacuometer
• Electric control panel
• Material input hopper 150×150 mm
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT1061 | PUGMILL PMV - 200 | 1500x400x600mm | 0,9 kW | 100 kg |
| Code | Description | Image |
|---|---|---|
| GT1487 | Connector for flat profile. Profile width: 120x12mm | |
| GT1565 | Die for extrusion of flat slug section 120x60 mm |
