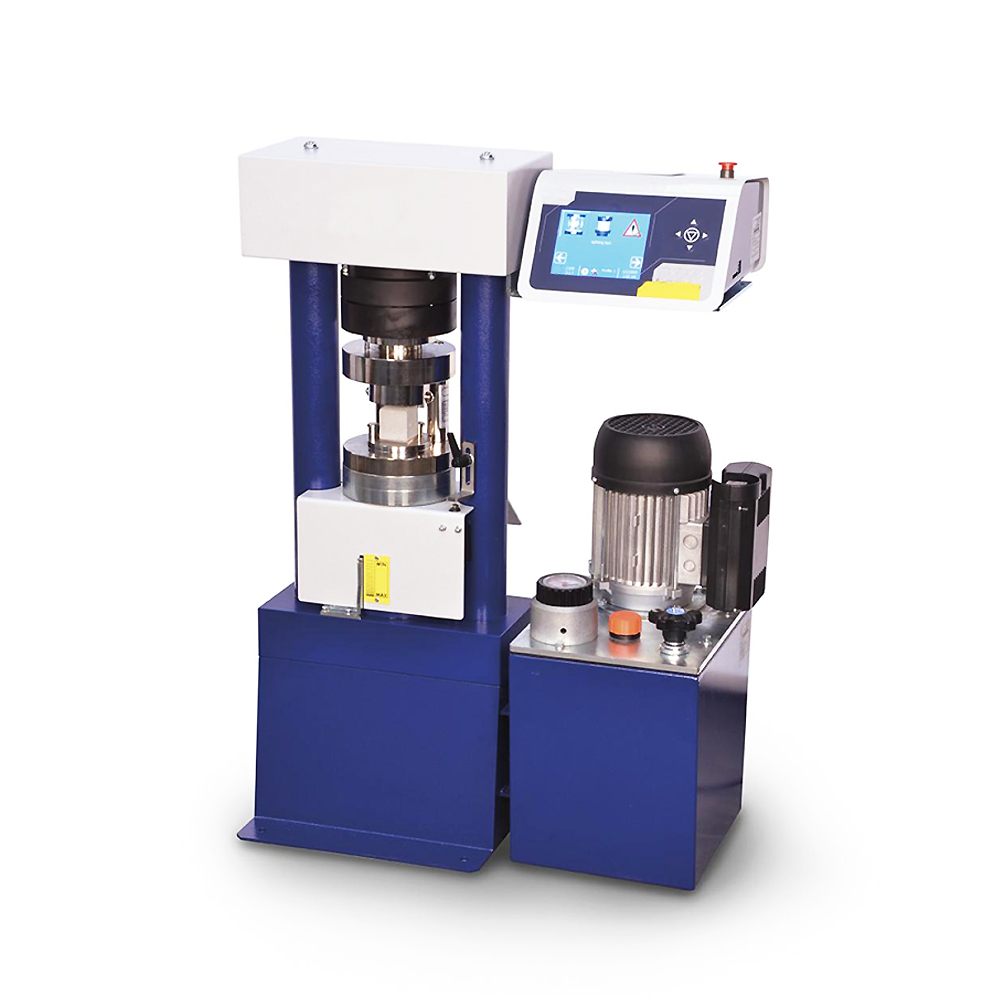

Press 25 Ton Plus
Press 250 kN / 25 Ton with control unit for semi-automatic control suitable for carrying out compression tests on portions of prism 40.1x40x160 mm, cubic side 40, 50, 70, 100 mm and 2 “; samples with max. of 180 mm.
STANDARDS:
EN 196-1 | EN 1015-11 | ISO 679 ASTM C109 | ASTM C349 | ASTM D1194 | DIN 1164 | BS 4550 | GOST 26798.1 | API RP 19 | CEN ISO 13503-2
TECHNICAL SPECIFICATIONS:
• High rigidity two-column frame
• Maximum vertical daylight between floors: 185 mm.
• Plate diameter: 153 mm.
• Piston stroke: 45 mm.
• Accuracy: Grade 1 starting from 1/10 of the scale.
• Supplied complete with lower compression plate and fitting for easy attachment of the compression device.
• Power supply: 230V 1ph 50Hz 750W.
• Weight: 300 – 330 kg.
| Code | Model | External dimensions | Maximum force applied | Power | Voltage | Weight |
|---|---|---|---|---|---|---|
| GT2652 | PRESS 25 TON PLUS | 900x600x1300 mm | 25 Ton | 750 W | 230V 1ph 50Hz | 330 Kg |
| Code | Description | Image |
|---|
