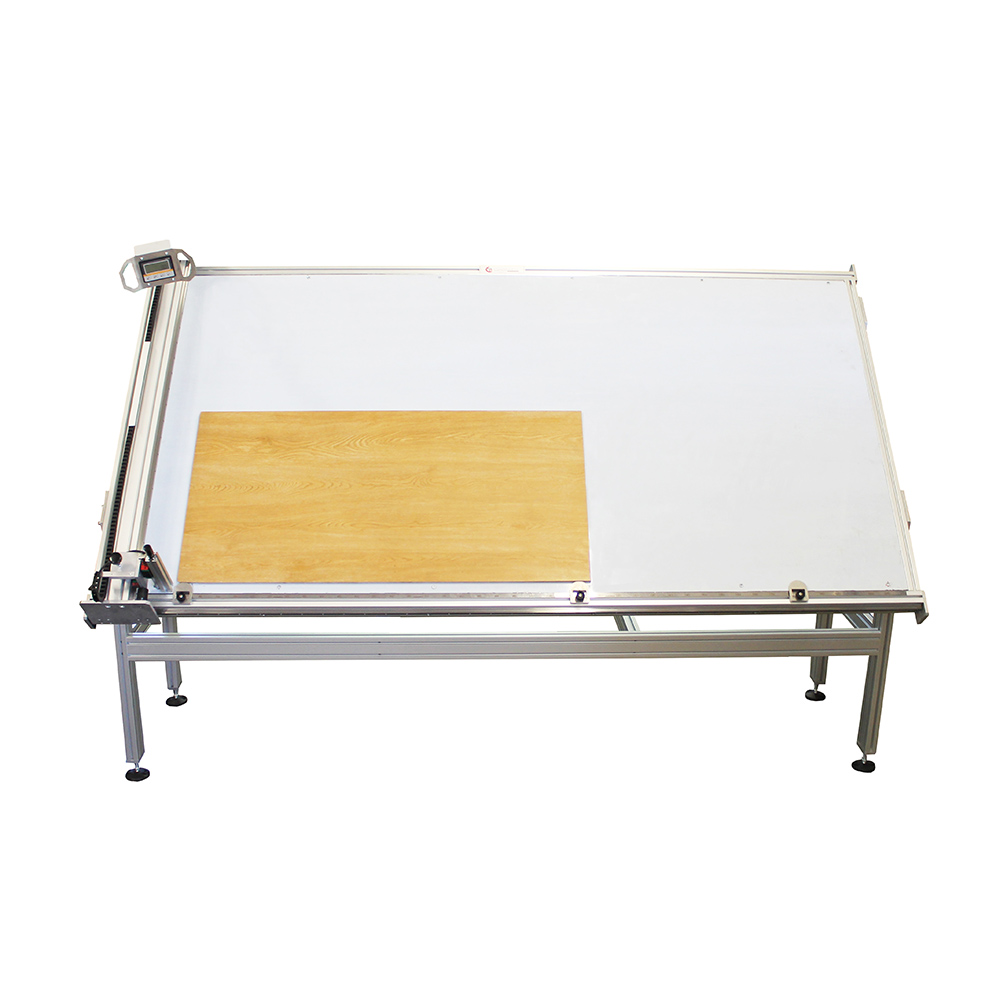

Planimeter
Instrument pleced mainly next to the production line but also in the laboratory.
It measures the thickness of the tile with respect to the inclined support surface. The measurement is taken by means of a probe positioned on a movable arm. The value is displayed on a controller display.
TECHNICAL SPECIFICATIONS
• Accuracy: ± 0,3 mm
• Resolution: 0,1 mm
| Code | Model | Useful measure | External dimensions | Weight |
|---|---|---|---|---|
| GT1881 | PLANIMETER 2000x1000 mm | 2000x1000 mm | 2500x1100x1750 mm | 120 Kg |
