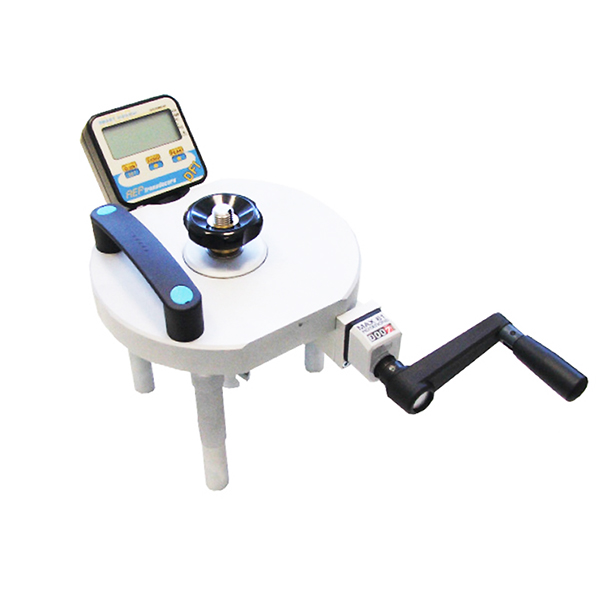

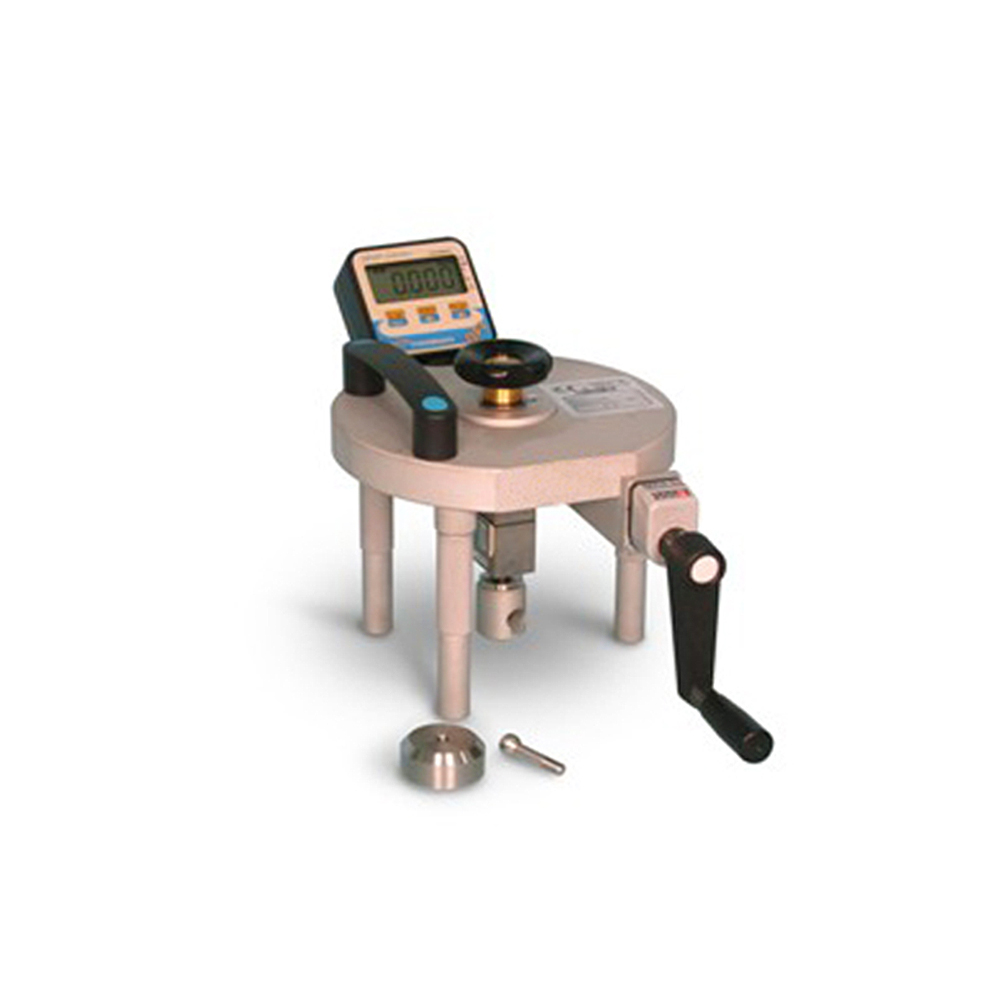

Manual Traction Dynamometer
TECHNICAL SPECIFICATIONS
• Max applicable load: from 5 up to 5 kN with different models
EQUIPMENT
• Carring case with instrument, n° 1 M8 screw,1 plate 50×50 mm
| Code | Model | Measuring range | External dimensions | Weight |
|---|---|---|---|---|
| GT1473 | DYNAMOMETER DTE-5 Digit | 0-5 kN | 400 x 250 x 300 mm | 9 Kg |
| GT1474 | DYNAMOMETER DTE-16 Digit | 0 -16 kN | 400 x 250 x 300 mm | 9 Kg |
| Code | Description | Image |
|---|---|---|
| GT0846 | Two component epoxi glue (lot 1 kg) | |
| GT0847 | Ball head screw M8 (from 0 up to 16 kN) | |
| GT0849 | Square plate 50x50 mm - M8 | |
| GT0851 | Square plate 100x100 mm - M8 |
