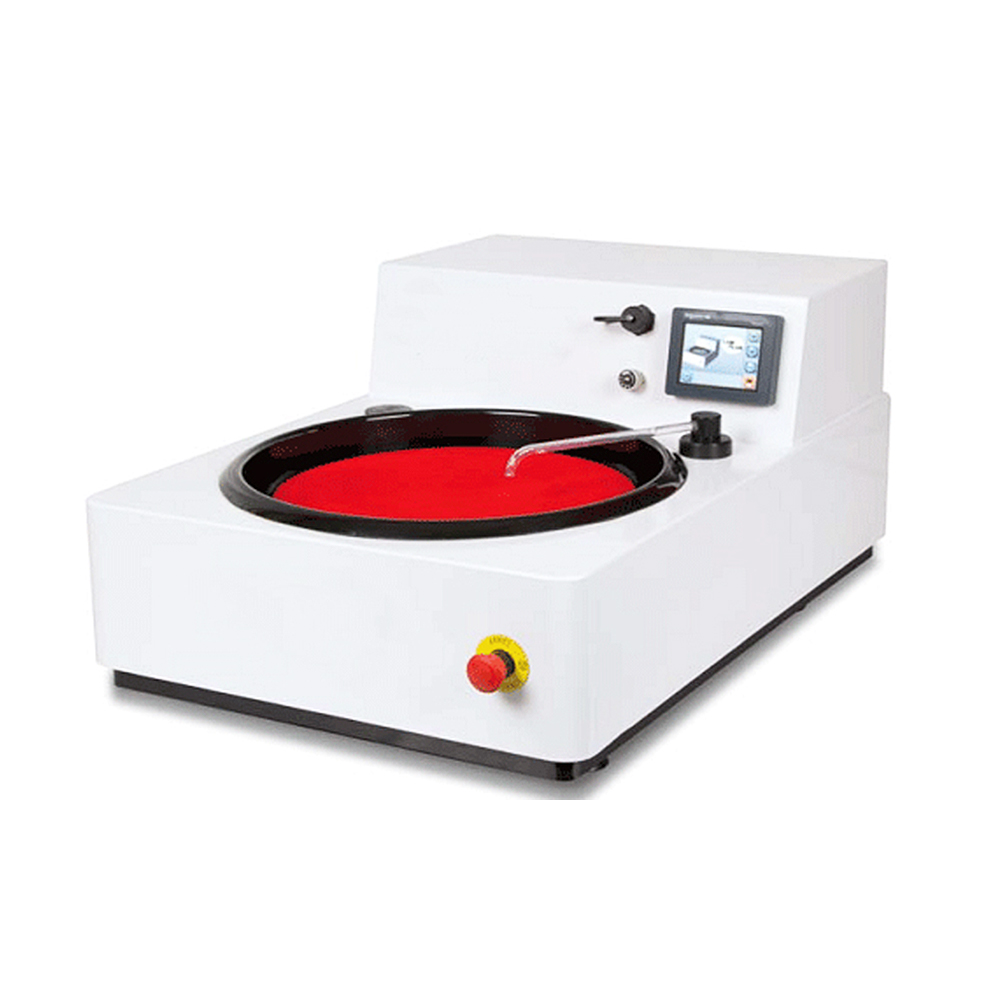

Lapping L 230 Vt
All steel construction epoxi painted. Belt transmission, with recycle water pump with tap and discharge tube. mWork interchangeable disks with quick fit. 24V control panel. Low noise during the working time. Touch Screen 3.5”
TECHNICAL SPECIFICATIONS AND EQUIPMENT
• Working plate dimensions Ø 230 mm.
• RAL 9003 epoxy painted steel frame.
• 3.5 “color touch screen for machine controls: ON / OFF, adjustment speed, rotation direction and water solenoid valve control.
• Plate rotation speed from 20 to 650 rpm.
• USB key for transferring work programs.
• Clockwise / anticlockwise rotation selectable.
• Water flow regulation with safety solenoid valve
• Flexible and mobile faucet
• Removable composite tank for easy cleaning of the machine.
• 230 V single-phase 50 Hz.
| Code | Model | RPM | External dimensions | Power | Weight |
|---|---|---|---|---|---|
| GT2059 | LAPPING L 230 VT | 20 ÷ 650 | 450x300x650 mm | 0,75 kW | 25 Kg |
