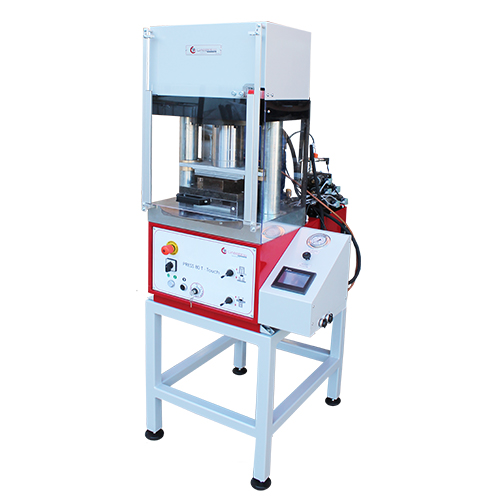

Laboratory Press 80 Ton
Semiautomatic o automatic hydraulic press for testing on ceramics. Essentially consisting by a support base steel epoxy painted, two column steel zinc, two cylinders and an hydraulic power-pack with oil tank. The maximum pressure from the top cylinder can be adjusted by the operative. Once manually charged in the mould the powder is being pressed by the upper cylinder up to the maximum pressure request. As soon as the cycle is over the sample can be taken out with the lower cylinder. With the automatic version is possible to programming up to three pressing cycle and mould are available on request three filling. The filling of the mould is made manually by the operator. The press come without mould, that should be ordered on request
TECHNICAL SPECIFICATIONS:
Press Touch:
• Manual pressure gauge
• Speed adjuster to the extracting
• Built-in pressure gauge on the panel or with touch screen
• Supply: 400 V – 50 Hz three phases (other voltage on request)
• Programming the working cycle through touch screen (for GT2398)
• Possible to set up to 10 Recipes (for GT2398)
| Code | Model | External dimensions | Maximum force applied | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT2398 | Press 80 T Touch | 510x710x1600 mm | 80 ton | 220 Bar | 2,2 kW | 500 Kg |
| GT2585 | Press 80 T Manual | 510x710x1600 mm | 80 ton | 220 Bar | 2,2 kW | 500 Kg |
| Code | Description | Image |
|---|---|---|
| GT0763 | Steel mould Ø 40 mm | |
| GT0764 | Steel mould Ø 50 mm | |
| GT0765 | Steel mould 40x80 mm | |
| GT0766 | Steel mould 50x100 mm | |
| GT0781 | Steel mould 55x110 mm | |
| GT1335 | Steel mould Ø 50 mm 2 cavities | |
| GT1730 | Steel mould Ø 30x100 mm | |
| GT1624 | Steel mould Ø 100x100 mm | |
| GT2583 | Steel mould Ø 100x200 mm 1 cavities | |
| GT2584 | Steel mould Ø 150x200 mm 1 cavities | |
| GT2586 | Steel mould Ø 100x150 mm 1 cavities |
