Laboratory Presses 40-60 Ton
Hydraulic press for testing on ceramics. Essentially consisting by asupport base steel epoxy painted, two column steel zinc, two cylinders and an hydraulic power-pack with oil tank. The maximum pressure from the top cylinder can be adjusted by the operative (see models below). Once manually charged in the mould the powder is being pressed by the upper cylinder up to the maximum pressure request. As soon as the cycle is over the sample can be taken out with the lower cylinder. With the automatic version (code GT2074 and GT2118) is possible to programming up to three pressing cycle and three filling. The filling of the mould is made manually by the operator. The press come without mould, that should be ordered on request
The moulds are avaible on request
TECHNICAL SPECIFICATIONS TOUCH MODELS
• Manual pressure regulator
• Speed adjuster to the extracting
• Built-in pressure gauge on the panel or with touch screen
• Supply: 400 V – 50 Hz three phases (other voltage on request)
• Programming the working cycle through touch screen
• Possible to set up to 10 Recipes
| Code | Model | External dimensions | Maximum force applied | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT2192 | PRESS 60 T Manual | 600x800x900 mm | 60 ton | 220 Bar | 2,2 Kw | 300 Kg |

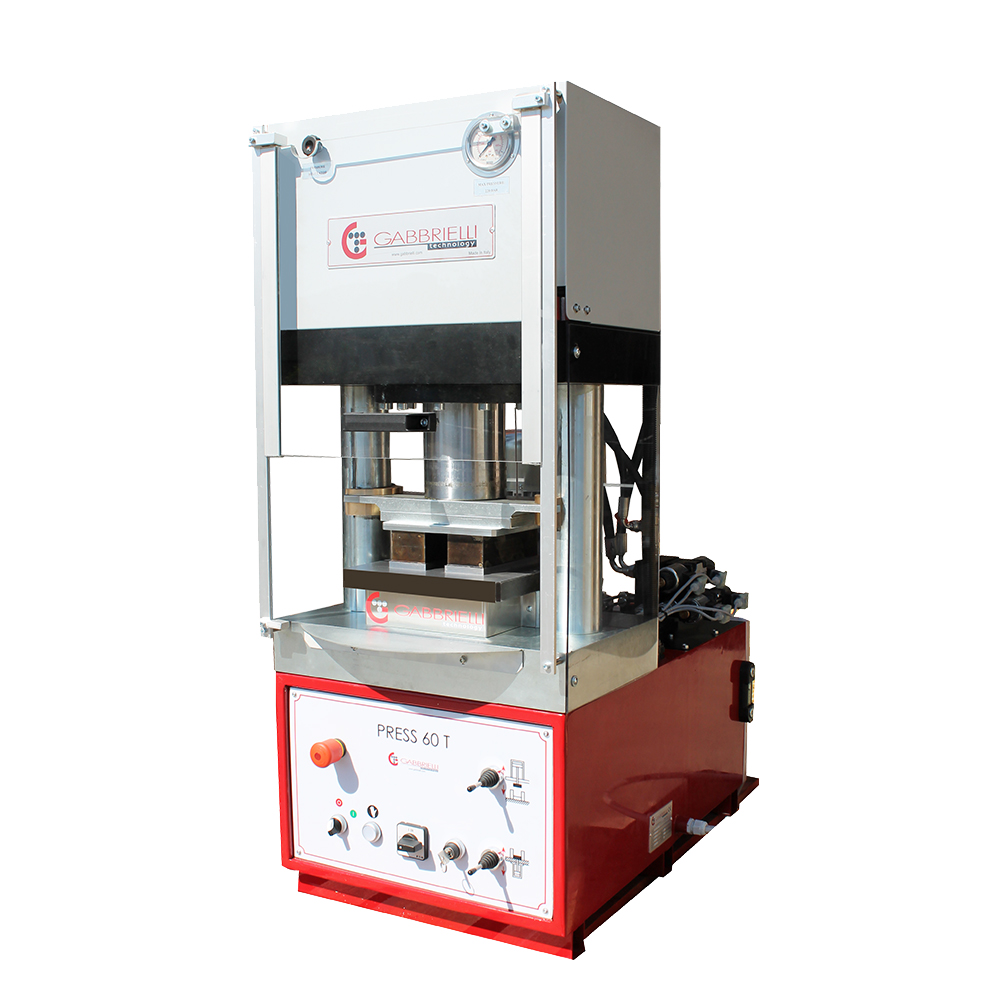

| GT2118 | PRESS 60 T Touch | 600x800x900 mm | 60 ton | 220 Bar | 2,2 Kw | 300 Kg |
| GT0769 | PRESS 40 T Manual | 460x800x1000 mm | 40 ton | 220 Bar | 2,2 Kw | 235 Kg |

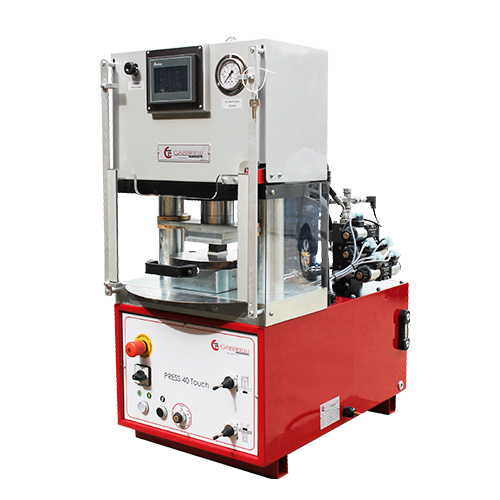

| GT2074 | PRESS 40 T Touch | 510x710x900 mm | 40 ton | 220 Bar | 2,2 Kw | 235 Kg |
| Code | Description | Image |
|---|---|---|
| GT0763 | Steel mould Ø 40 mm | |
| GT0764 | Steel mould Ø 50 mm | |
| GT0765 | Steel mould 40x80 mm | |
| GT1335 | Steel mould Ø 50 mm 2 cavities | |
| GT1730 | Steel mould Ø 30x100 mm | |
| GT1624 | Steel mould Ø 100x100 mm | |
| GT0766 | Steel mould 50x100 mm | |
| GT0781 | Steel mould 55x110 mm |
