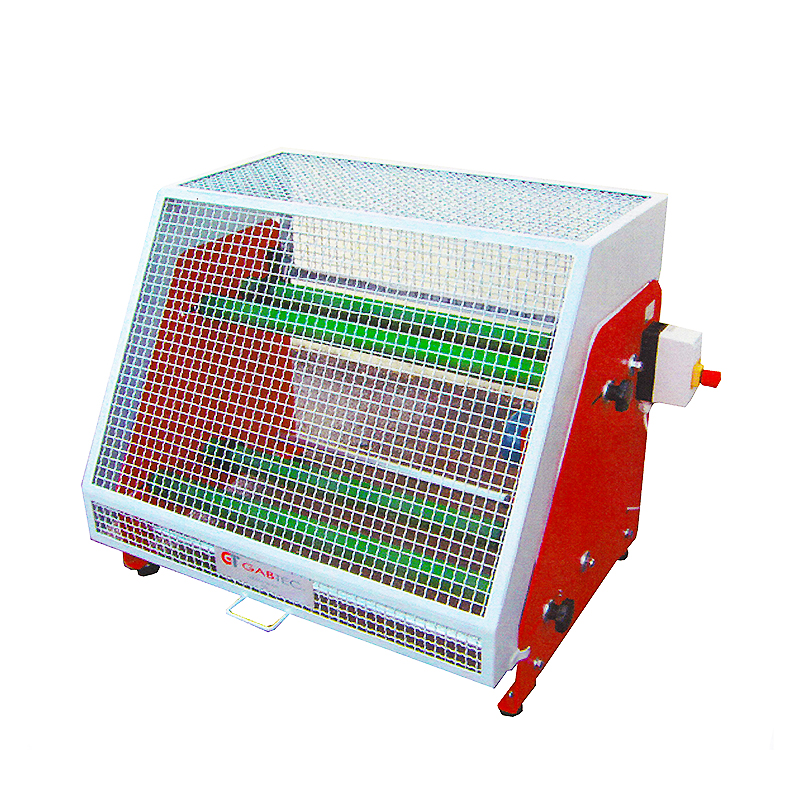

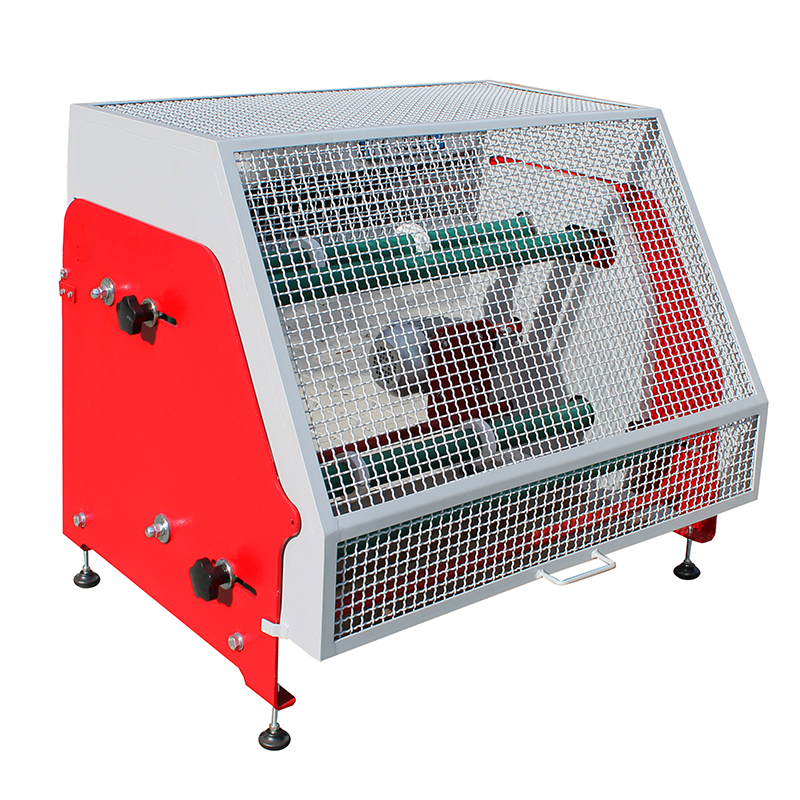

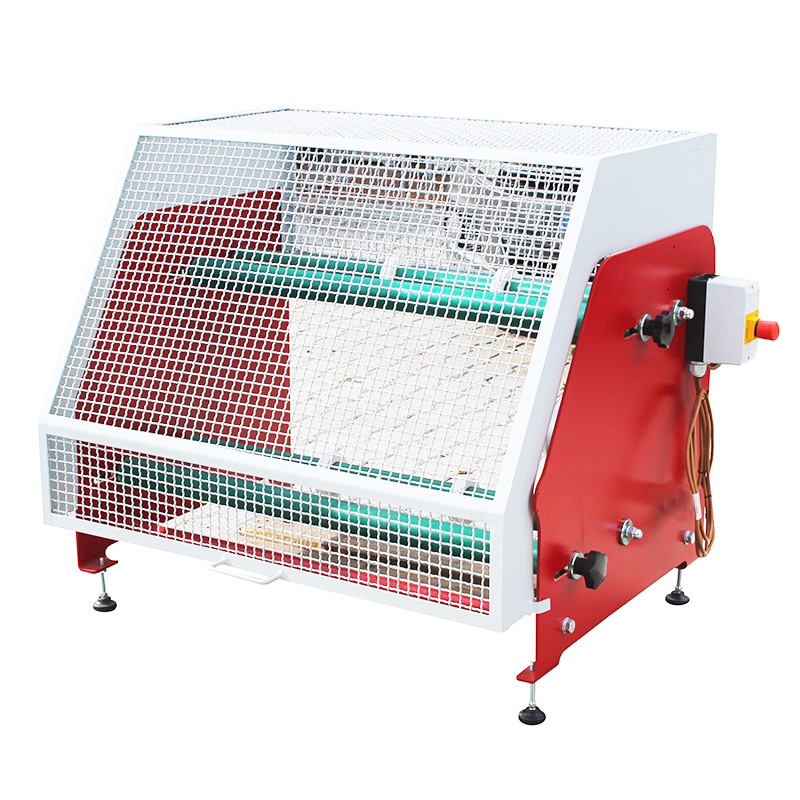

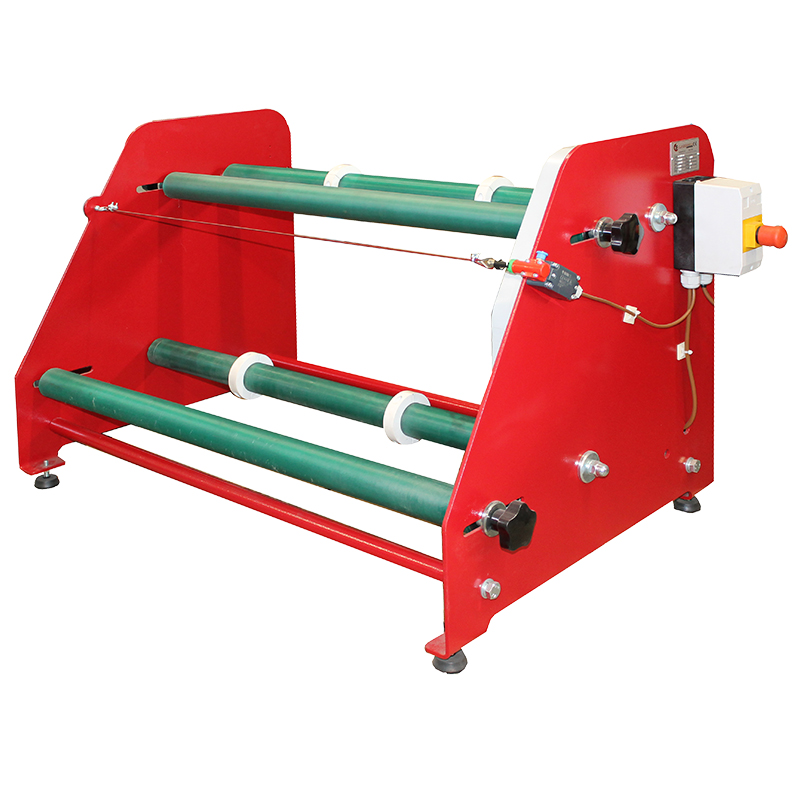

Mill for grinding with cylindrical jars. The mill is composed of 2 or 4 steel roller PVC coated onto which the alumina jars are revolving, filled with a load of balls, water and the material to be milled. The grinding is achieved by turning the jar.

EQUIPMENT
• 1 or 2 rolling layers made by steel PVC coated
• Useful rollers width:880 mm
• Jars type: cylindrical by 1,5 – 3 – 5 – 10 – 15 – 20 lt. capacity
• Supply: 400v – 50Hz Tree Phases (other voltage on request)

Code	Model	Number of Levels	External dimensions	Power	Weight
GT0546	JAR ROLLER 2	2	1350x710x700 mm	0,75 kW	130 Kg
GT0545	JAR ROLLER 1	1	1350x710x700 mm	0,75 kW	100 Kg

Code	Description	Image
GT0537	1,5 lt cylindrical Jar
GT0538	3,0 lt cylindrical jar
GT0540	10,0 lt cylindrical jar
GT0541	15,0 lt cylindrical jar
GT1267	20,0 lt. cylindrical jar
GT0531	Alubit balls Ø 13 mm (qty 1 kg)	Open image
GT0532	Alubit balls Ø 19 mm (qty 1 kg)	Open image
GT0533	Alubit balls Ø 25,4 mm (qty 1 kg)	Open image
GT0542	Alubit balls Ø 31,8 mm (1 kg.)
GT0543	Alubit balls Ø 38,1 mm (1 kg.)
GT0544	Alubit balls Ø 44,4 mm (1 kg.)
GT0604	Grid safety and start-stop button
GT1397	Control board with inverter, tachimeter and timer
GT0539	5,0 lt cylindrical jar
