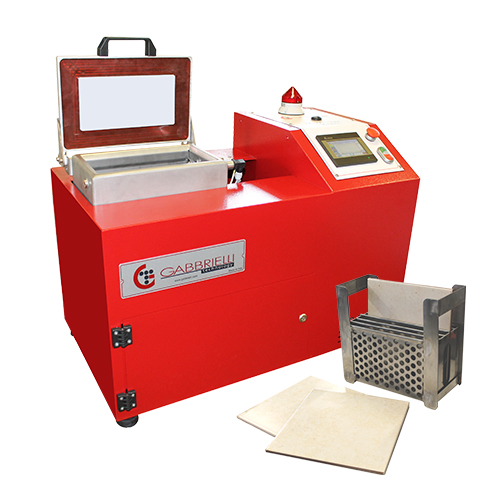

Isovacuum 150 Mini

Standards

ASTM C 373 BS 3402:1969 ISO 10545-3 ISO 10545-12

Laboratories

Ceramic Tiles Lab Raw Materials Lab Sanitarywares Lab Tableware lab

Laboratory instrument to establishing the water absorption under vacuum of ceramic tiles according to the cycle of the last ISO 10545-3 Standard. The cycles are stored and the operator can easily select or modify the same or programming newone. The touchscreen installed has a self explanatory interface which allows for a variety of information. The instruments are tested and calibrated according to the UNI EN ISO 10545-3:2018 others standard on demand. Isovacuum is supplied and test according to the cycle of ISO 10545-3 Standard. Att: The instrument is strong recommended for testing mosaic tiles acc. to ISO 10545-3 standard.

TECHNICAL SPECIFICATIONS
• Touch screen with working cycle display
• Friendly and easy use of the instrument by means of the touch-screen that allows controlling the working cycle parameters and the cycle trend display
• Data logger of the cycle
• Saving time of working cycle duration
• Easy and ergonomic tiles charge/discharge
• Horizontal tank with steel basket for max. nr.5 tiles (max size 15×20 cms.) With different thickness
• Integrated demineralised water tank
• Absolute pressure sensor
• Reaching the pressure of 4hPa on demand 2hPa and Keeping the pressure of +/- 1 Kpa
• Nr. 10 programmable working cycles
• Exporting data by USB (pen drive)
• Predisposition for ethernet output
• Possibility of instrument calibration by means of calibrated gauge
• Alarms setting
• Predicted maintenance
• Power supply: 230 V – 50Hz single phase (other voltages on request)

EQUIPMENT
• Holder tiles basket in AISI-304, adaptable to the thickness of the tile

Code	Model	External dimensions	Power	Weight
GT2143	ISOVACUUM 150 MINI	825x460x640 mm	160 W	60 Kg

Code	Description	Image
GT2088	ACCREDIA reference Vacuometer	Open image
GT1767	Vacuum Pump
GT1324	Bottle 500 cc special oil for pump	Open image
GT2123	Microfiber Cloth 40x40 cm
GT2343	Reference vacuometer

| Data Sheet

| Add to quote
