Isothickness
Laboratories
Ceramic Tiles LabInstrument for the measurement of the thickness on ceramic tiles. The test is carried out measuring the max thickness in diagonal to the tiles. The instrument can be connected via serial cable to Datadimension / Dataplucometro or via wireless (Datadimension / Wireless) thus taking advantage at best of the relevant software.
TECHNICAL SPECIFICATIONS

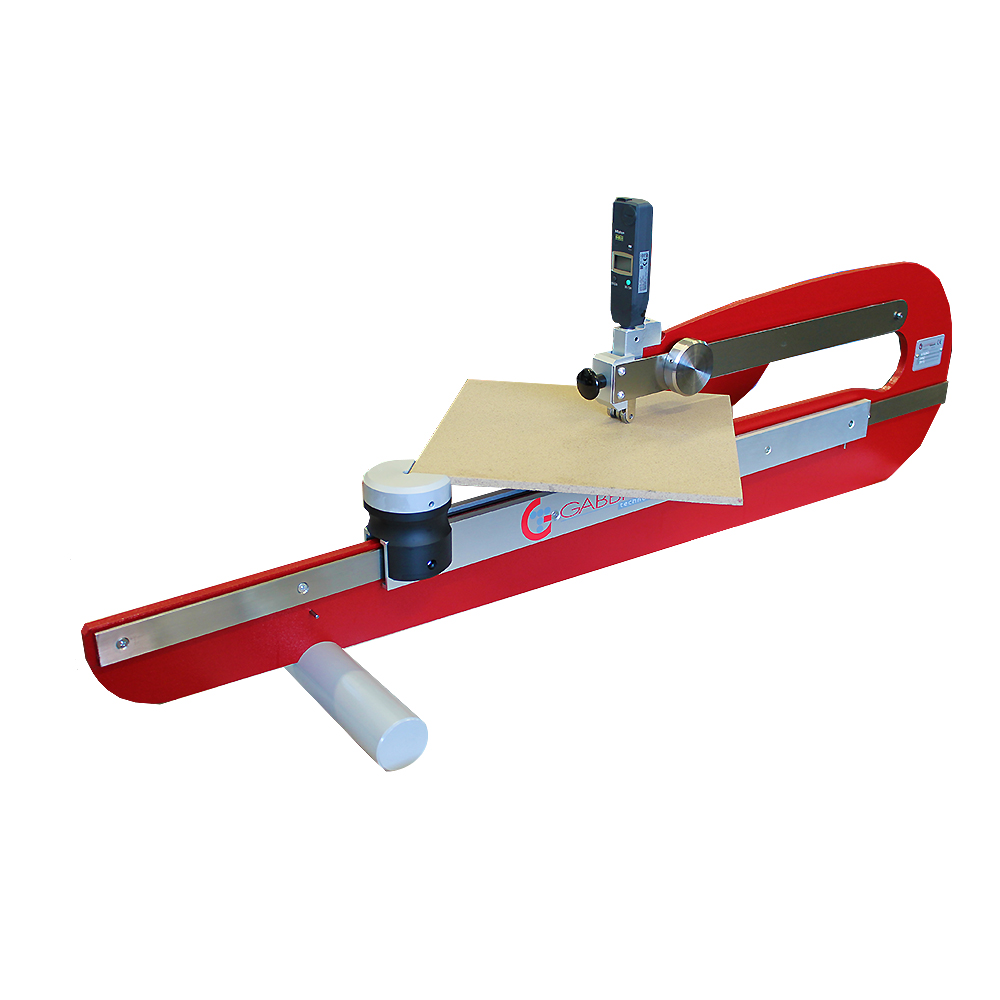

GT0383 – ISOTHICKNESS
• Max diagonal measuring tiles: 980 mm
• Maximum thickness 15 mm tile measurable
• Digital gauge 0,01 mm

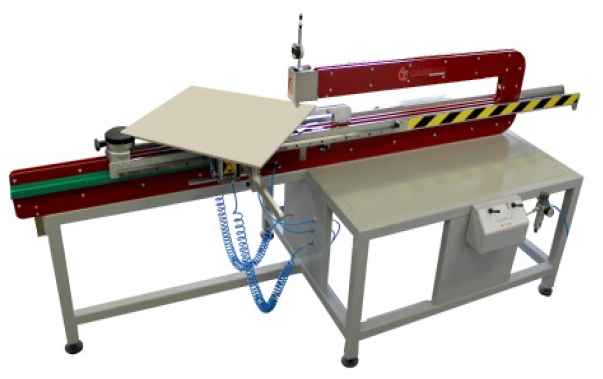

GT1813 ISOTHICKNESS 1600 | GT2017 ISOTHICKNESS 1600 WIRELESS
• Max diagonal measuring tiles: 2250 mm
• Digital/wireless gauge 0,001 mm
• Maximum thickness 30 mm tile measurable
DOTAZIONE
GT0383 – ISOTHICKNESS
• Digital/wireless gauge and connection cable to Datadimension / card
GT1813 ISOTHICKNESS 1600 | GT2017 ISOTHICKNESS 1600 WIRELESS
• Digital/wireless gauge and connection cable to Datadimension/card
| Code | Model | DIM. MAXIMUM DIAGONAL TILES | External dimensions | Weight |
|---|---|---|---|---|
| GT1813 | ISOTHICKNESS 1600 | 2250 mm | 2600x1200x1210 mm | 250 kg |
| GT2017 | ISOTHICKNESS 1600 WIRELESS | 2250 mm | 2600x1200x1210 mm | 250 kg |
| GT0383 | ISOTHICKNESS 650 | 980 mm | 1200x350x400 mm | 35 Kg |
| Code | Description | Image |
|---|---|---|
| GT0679 | Digital gauge 0,01 mm | Open image |
| GT1658 | Wireless digital Gauge 0,01 mm | Open image |
| GT2082 | Digital gauge 0,001 mm | |
| GT2081 | Digital gauge wireless 0,001 mm | |
| GT0385 | Serial cable for digital gauge | Open image |
