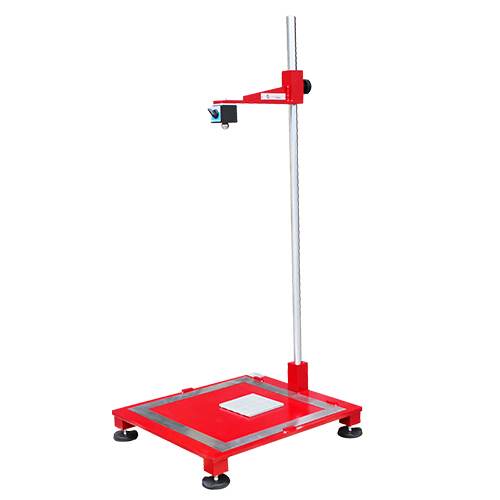

Impact Test CSTB Choc Léger
Instrument used to dermine the weak shock resistance of glazed ceramic tiles according to 3778-V3-2018, Annex 7.
Instrument is composed by:
– Rigid support to sustain a cement sample of 40×40 cm
– A vertical rod where you can regulate a support with a magnet with a steel ball run on it
– A steel ball of 50 gr
– A cement sample plate of 40×40 cm with thickness of 4 cm
TECHNICAL SPECIFICATIONS
• Steel structure epoxy powder painted
EQUIPMENT
• Steel frame for positioning the tile
• Steel chrome ball 50 gr
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT2727 | IMPACT TEST LÉGER | 500x550x1800 mm | 50 Kg |
| Code | Description | Image |
|---|---|---|
| GT2098 | Kit for CSTB Cahier 3778 Annex 6 |
