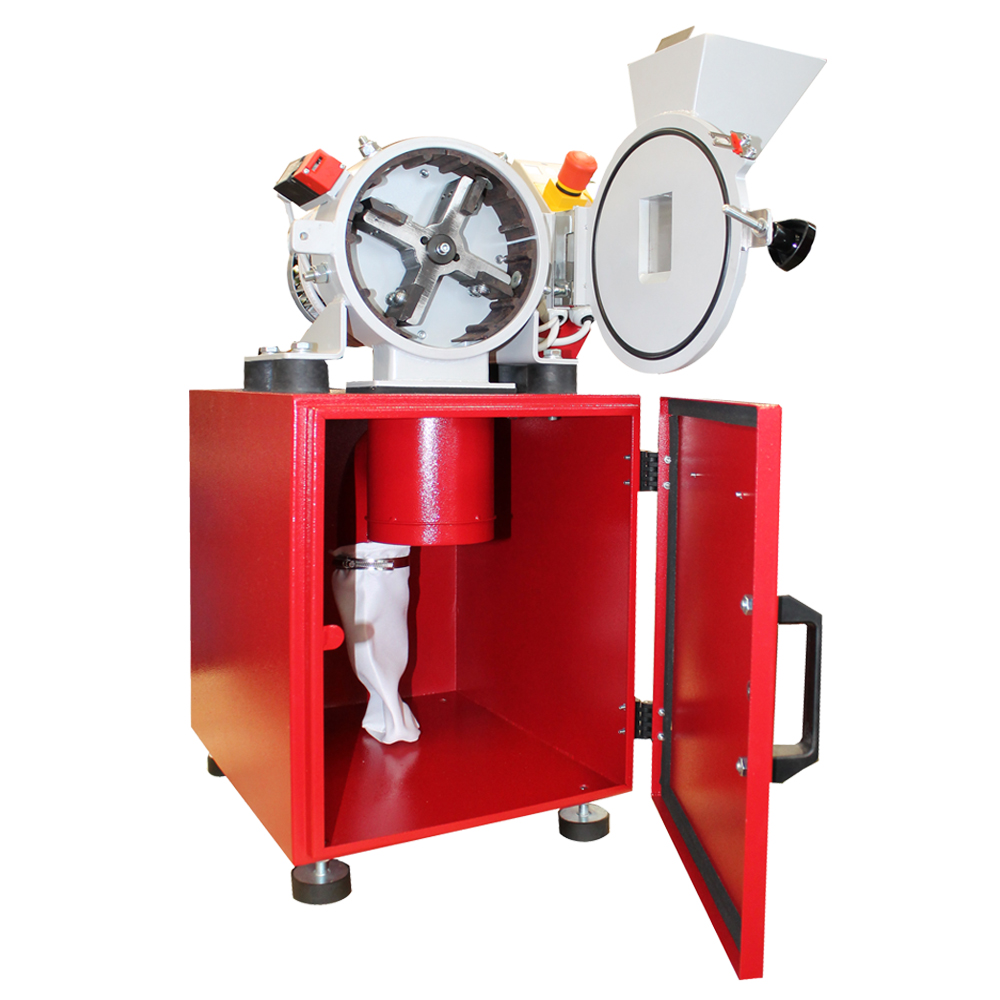

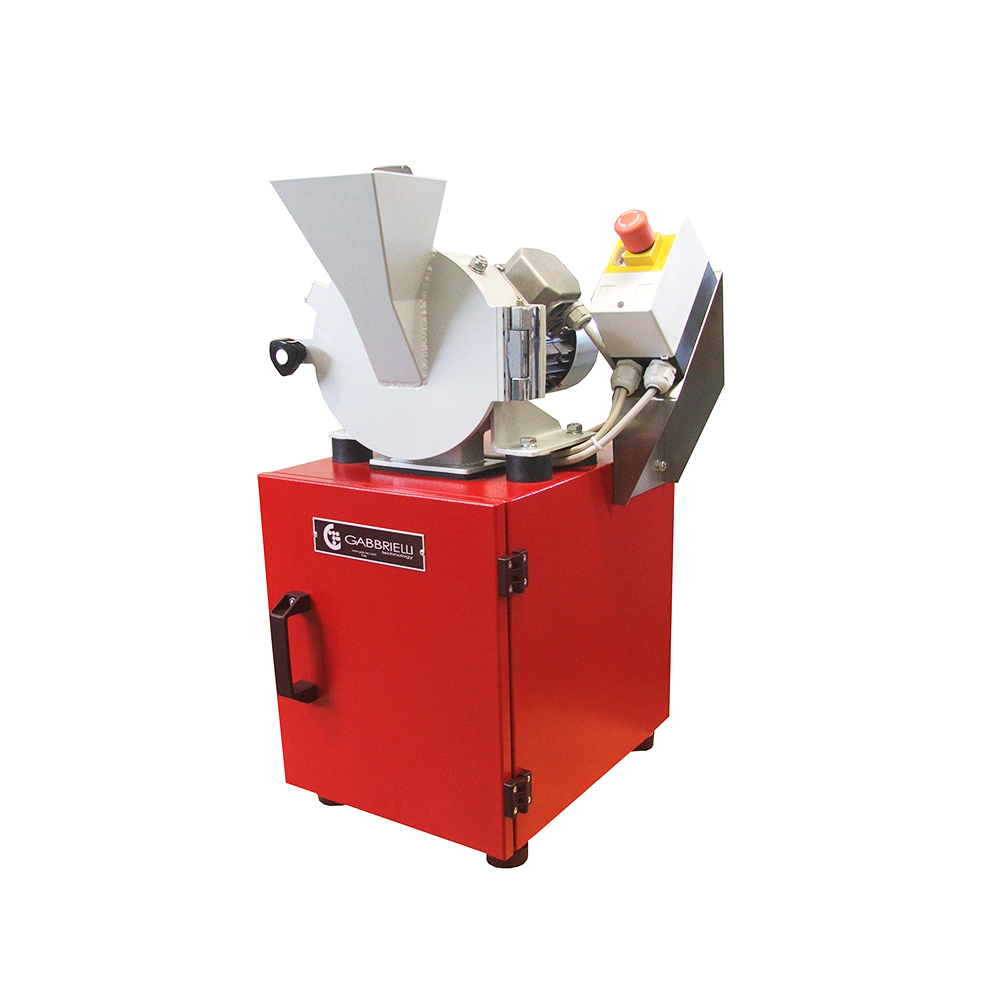

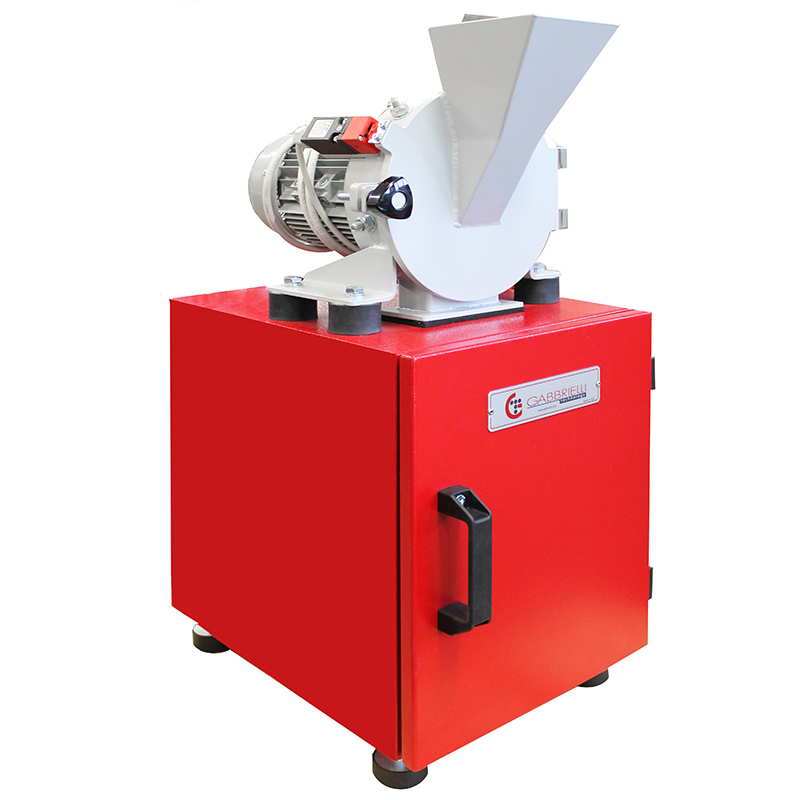

Hammer Mill Hm-50
Categories
GrindingStandards

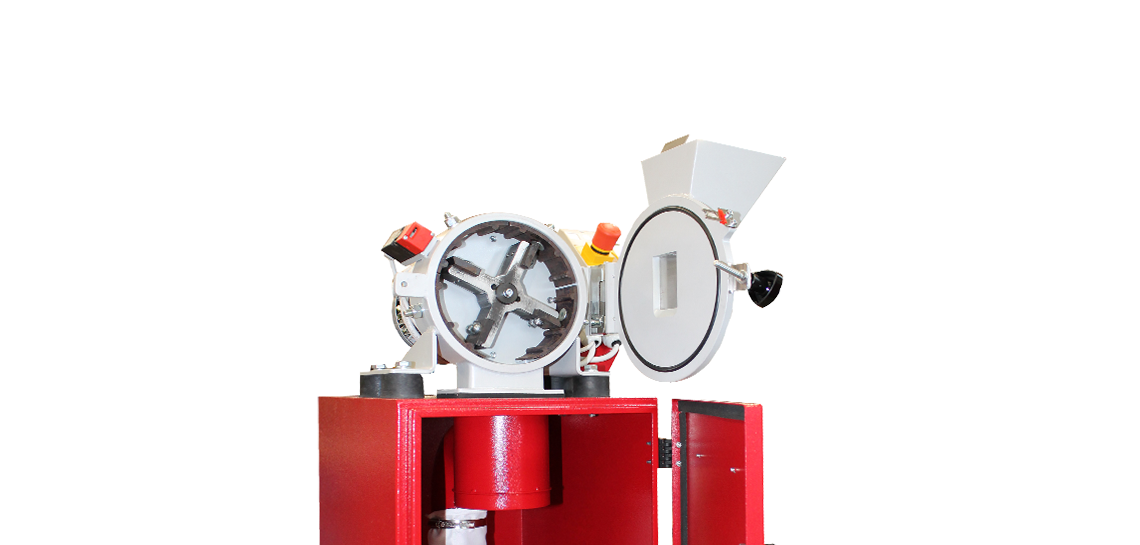

Laboratory instrument for the dry grinding of medium -high hardness material as granite, feldspar, chamotte, gres, etc.The finess of milling is determined by the relevant type of grid in use. The residual dust is being collected into a filtering hose inside the container. Easy replacement hardened steel jaws.
TECHNICAL SPECIFICATIONS
• Max hardness grinding’s material: 6 ÷ 7 MOHS scale
• Grinding chamber: Ø 180 mm
• Loading hopper with feed of 30 mm
• Production: 1 ÷ 50 kg/h
• Supply: 400 V – 50 Hz three phases (other voltage on request)
EQUIPMENT
• Instrument is supplied with 3 grinding screen: 1,2 and 3 mm opening
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT0583 | MILL HM-50 | 500x600x900 mm | 0,75 kW | 60 Kg |
| Code | Description | Image |
|---|---|---|

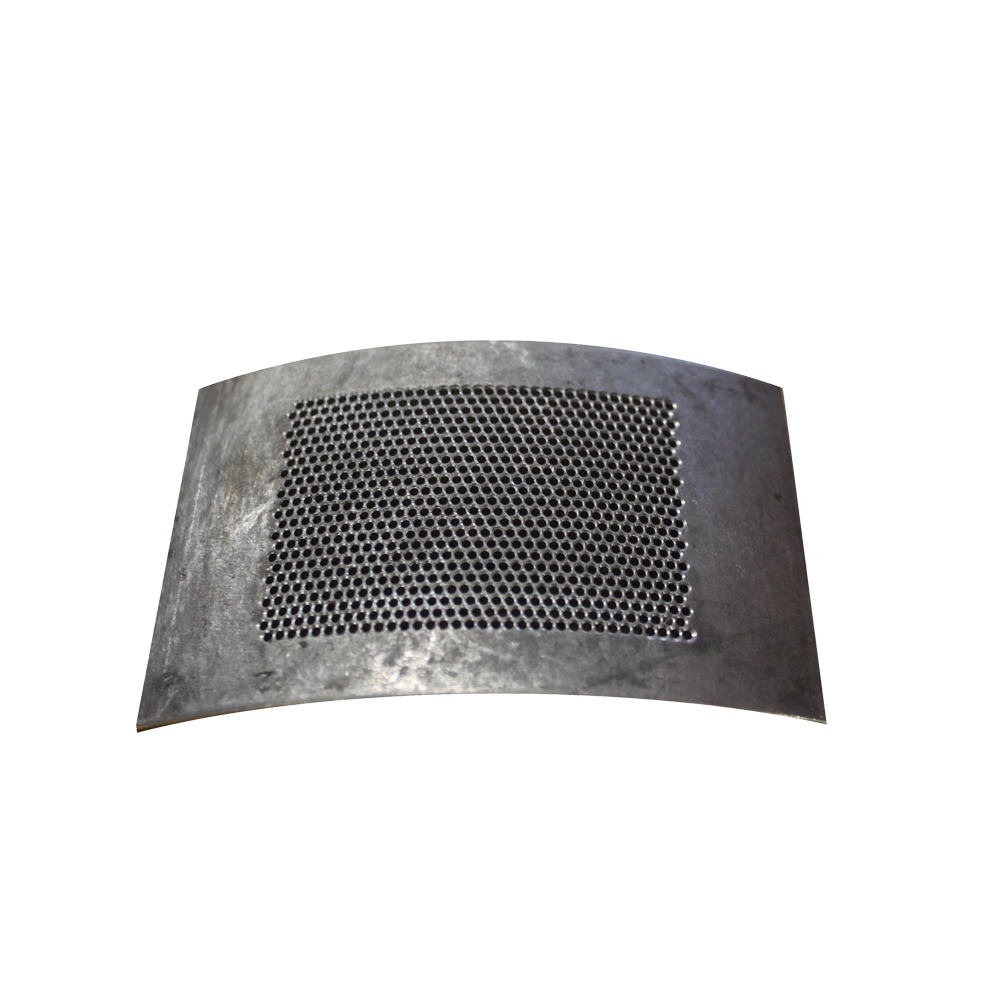

| GT0586 | Screen of 1 mm opening | Open image |

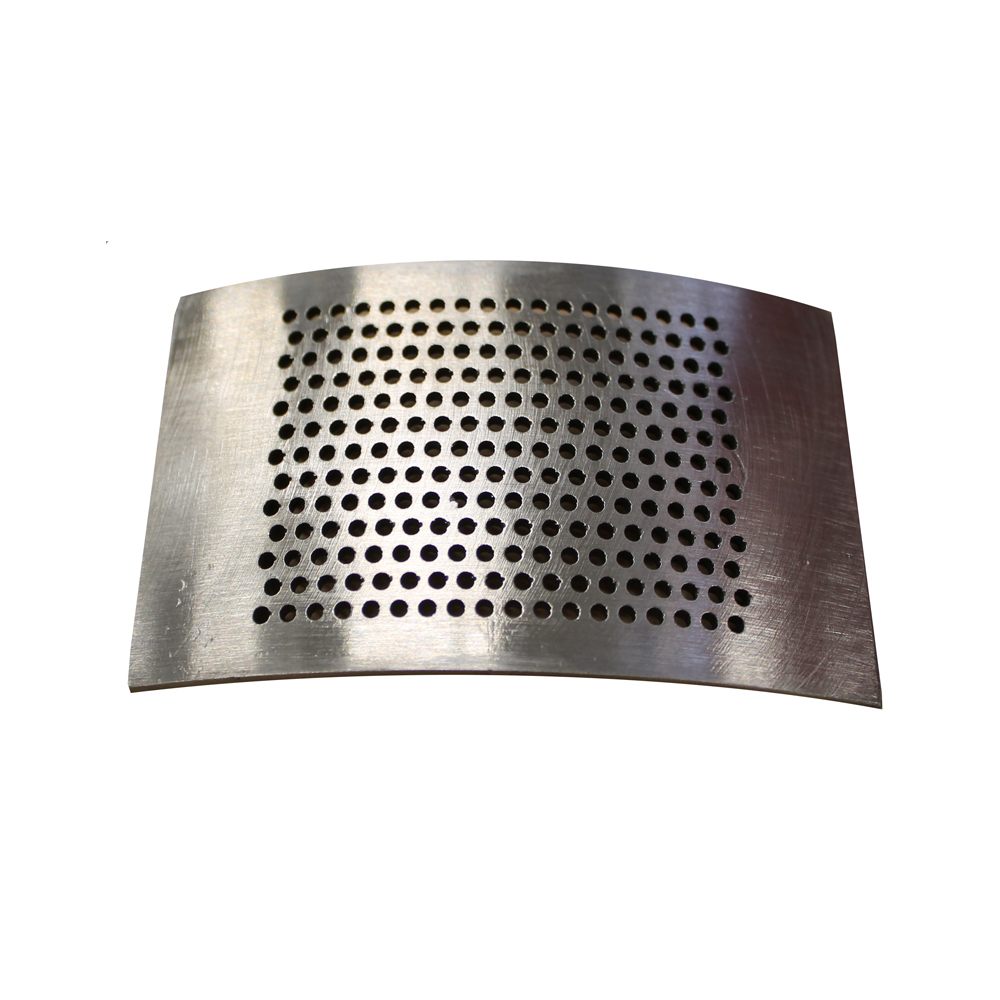

| GT0587 | Screen of 2 mm opening | Open image |

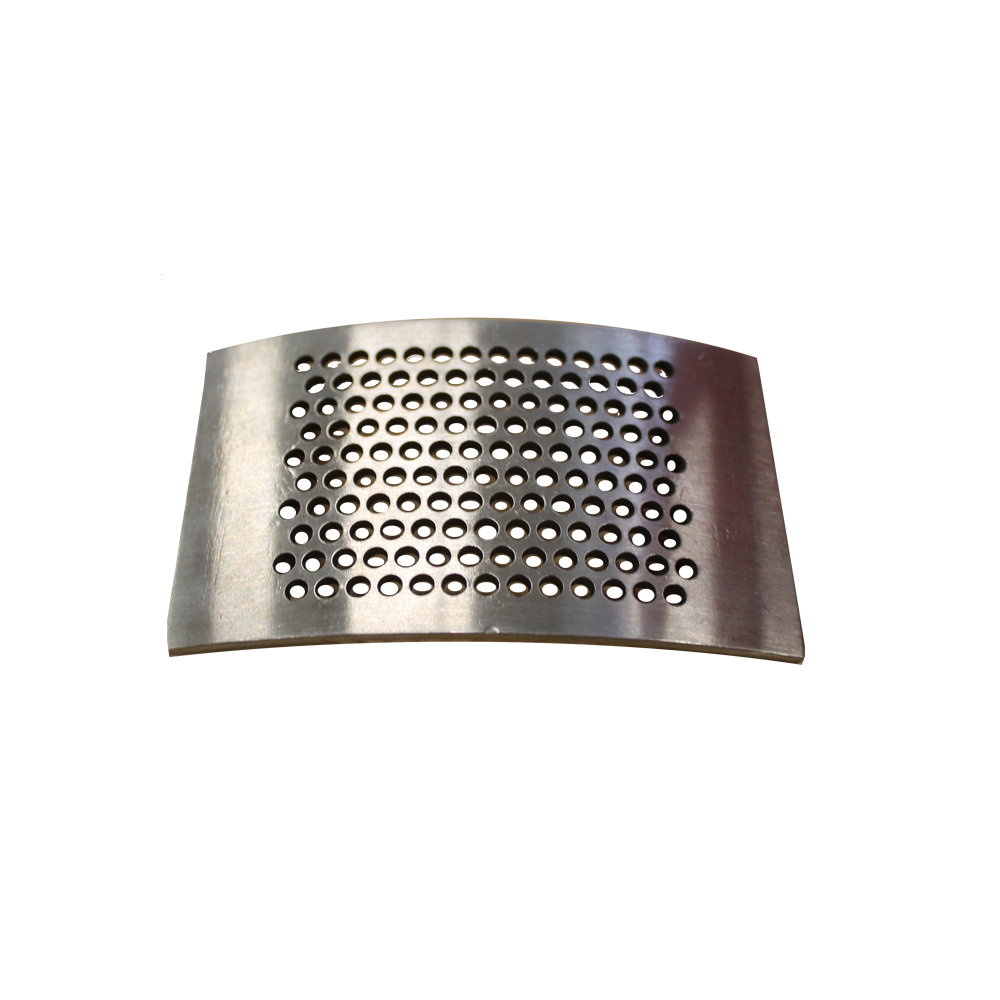

| GT0588 | Screen of 3 mm opening | Open image |

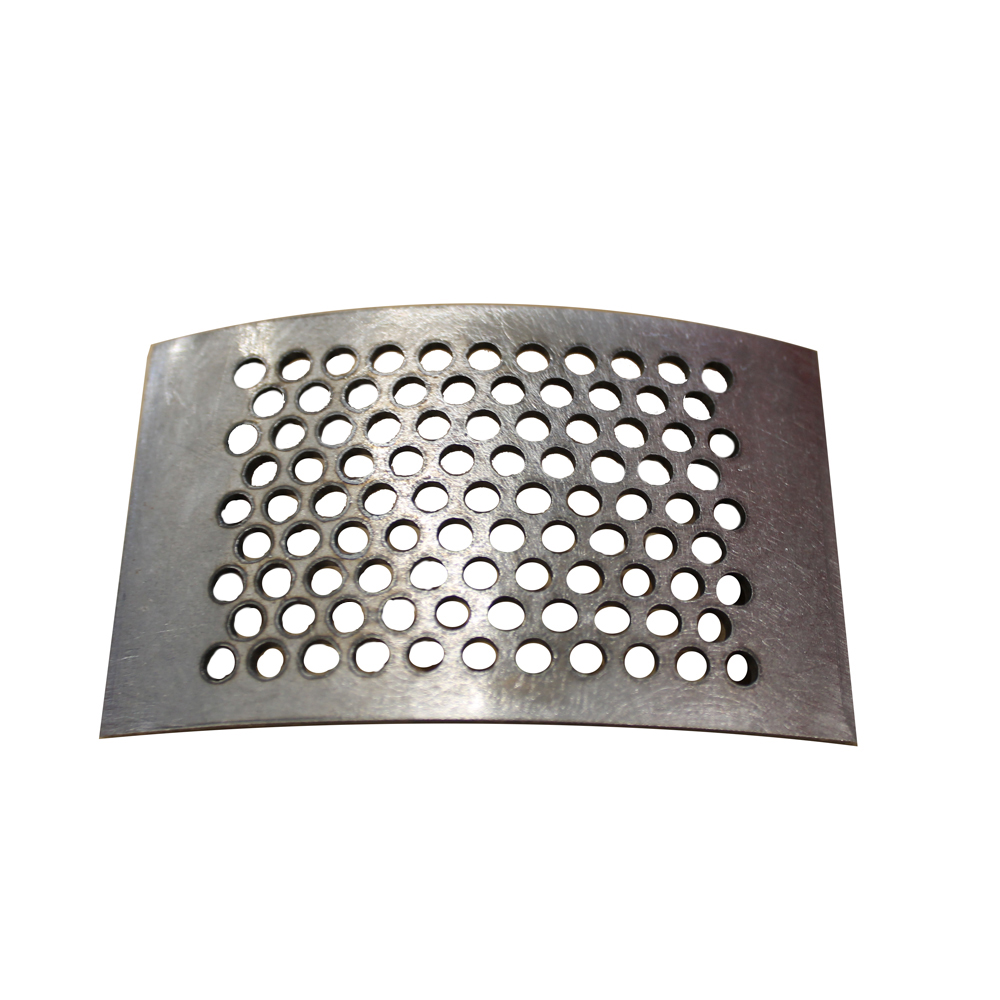

| GT0589 | Screen of 4 mm opening | Open image |

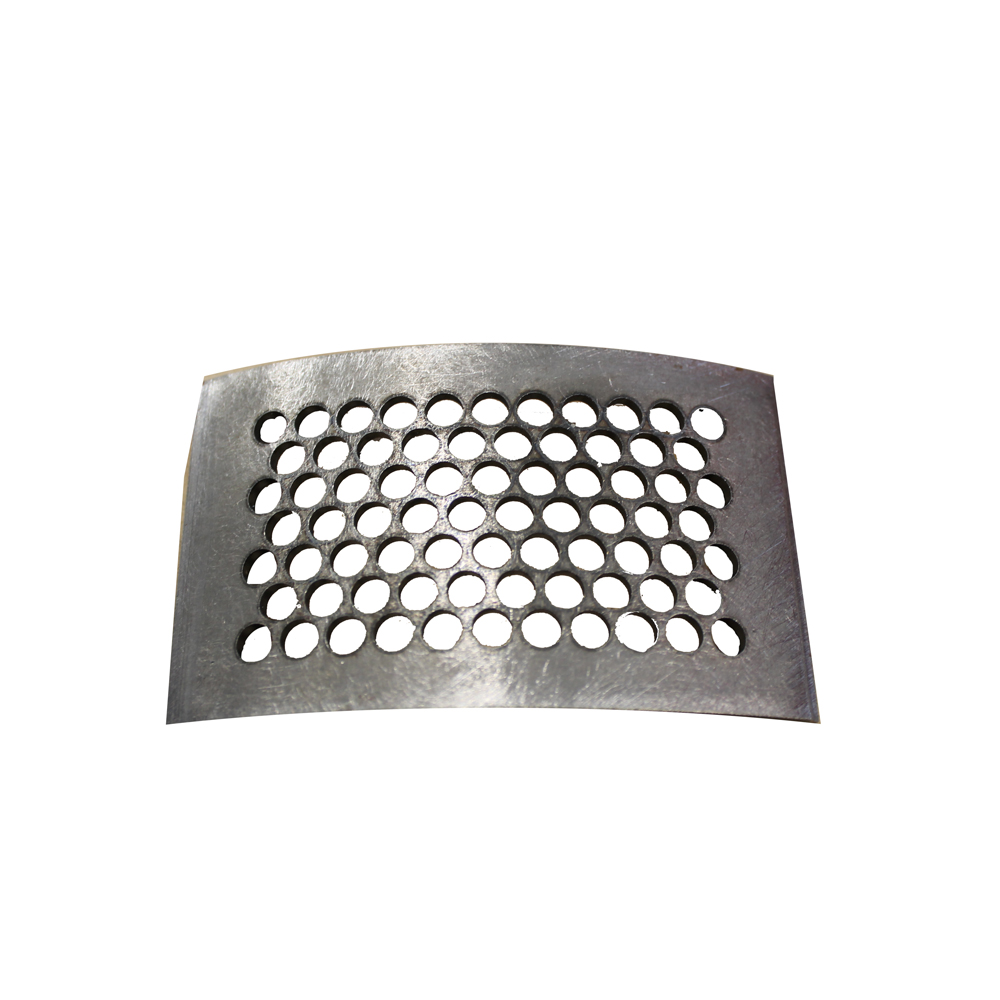

| GT0590 | Screen of 5 mm opening | Open image |

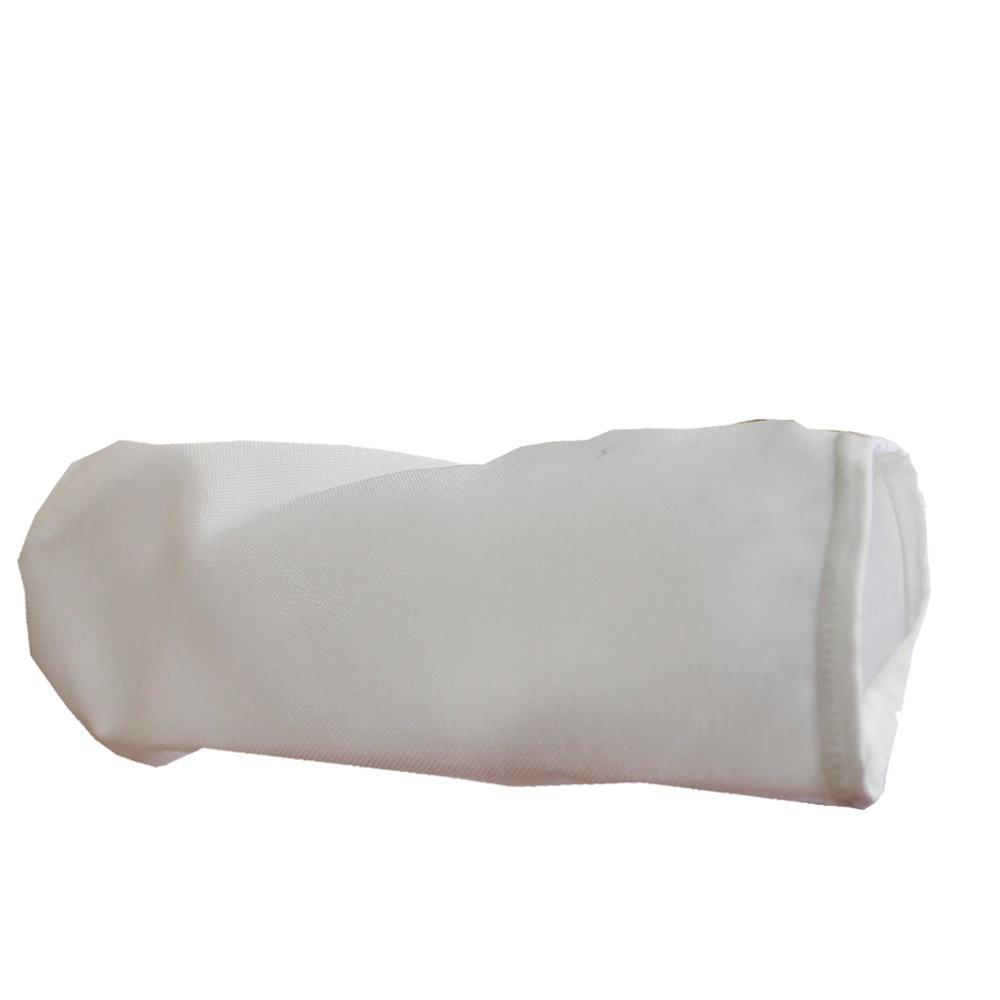

| GT0591 | Filtering hose | Open image |
| GT0592 | Set grinding hammers+CA | |

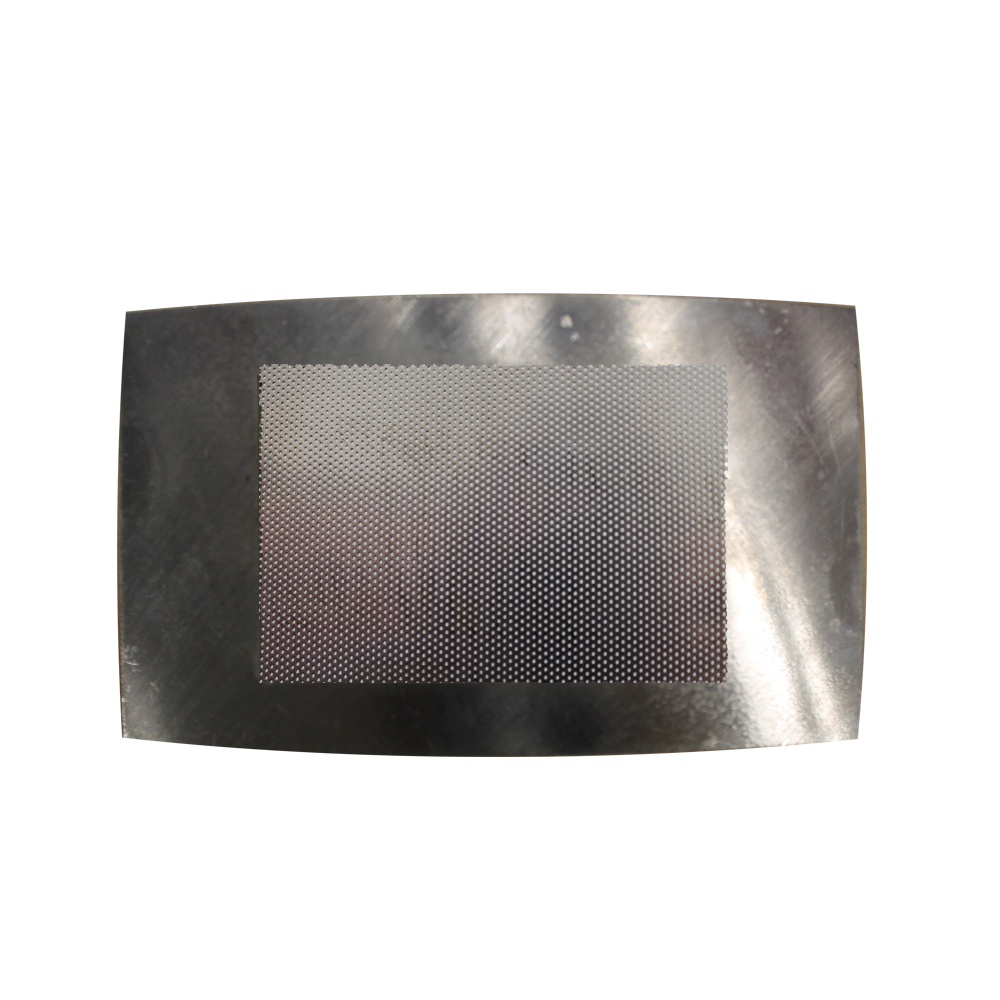

| GT2178 | Screen of 0,5 mm opening | Open image |
