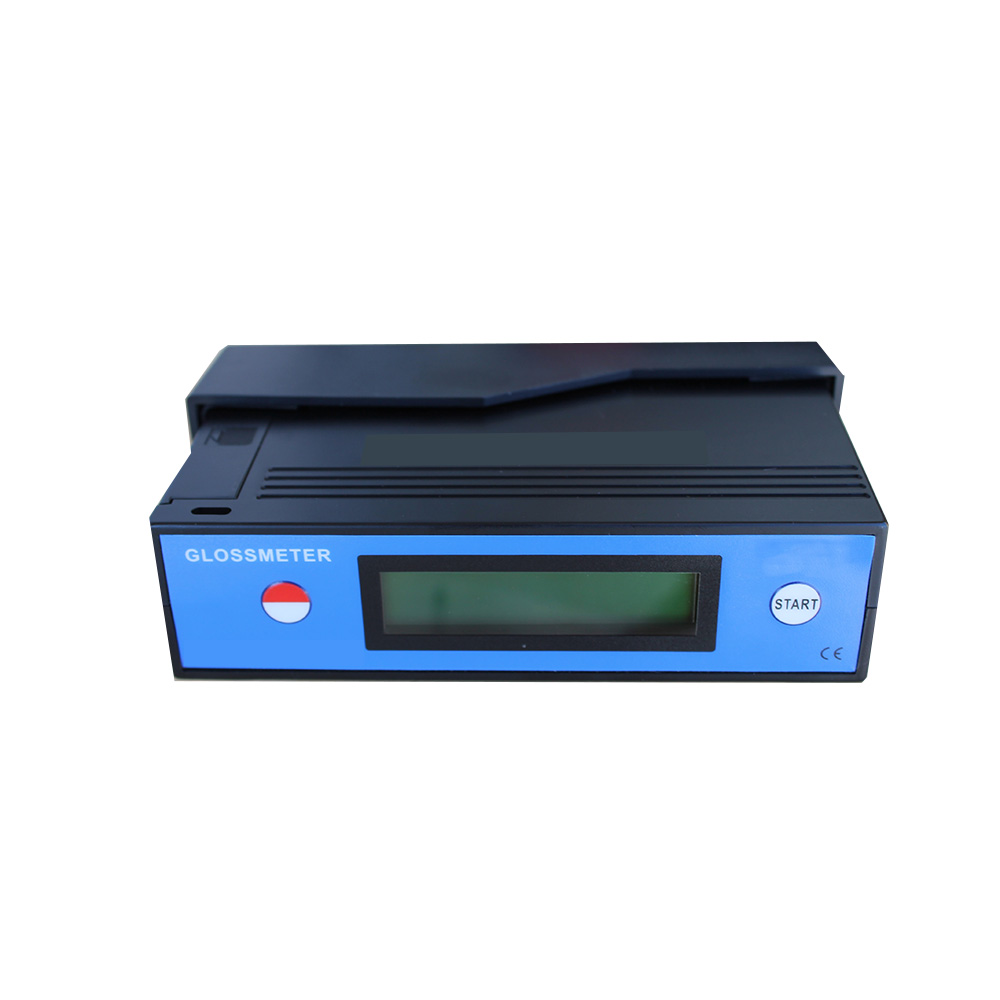

Glossmeter GM 20-60-85
Instrument to establishing the specular gloss on the abraded tiles, marble, granito, glass, paint, wood and specular surfaces. With a single key it is possible to select the measuring function, and the show result is visible on the display up to 30 seconds, later the instrument switch-off automatically. Calibration system simple and precise.
TECHNICAL SPECIFICATIONS
• Measuring range: 0 ÷ 199,9 gloss
• Reading angle: 20 – 60 – 85 °
• Resolution: 0,1 gloss
• Precision: + /- 1,5 gloss
• Reproducibility: ± 0,4 gloss
• Automatic calibration with calibration standard
• Type of light: A
• LCD display , 10 mm high
• Sensor: photoelectric cell Sil
• Measuring area: 11 x 54 mm
• Supply: 1,5 V battery
Points of reading:
• 20° = 10 x 10 mm
• 60° = 10 x 20 mm
• 85° = 7 x 24 mm

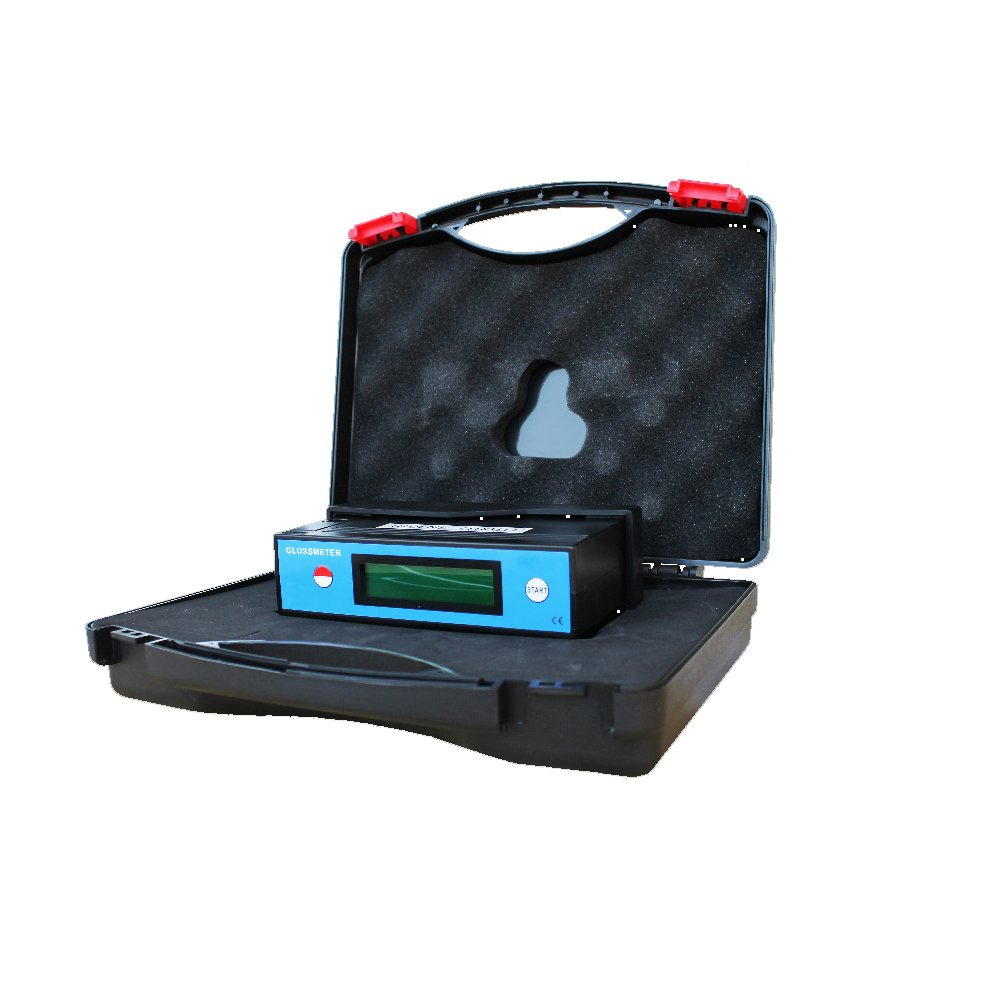

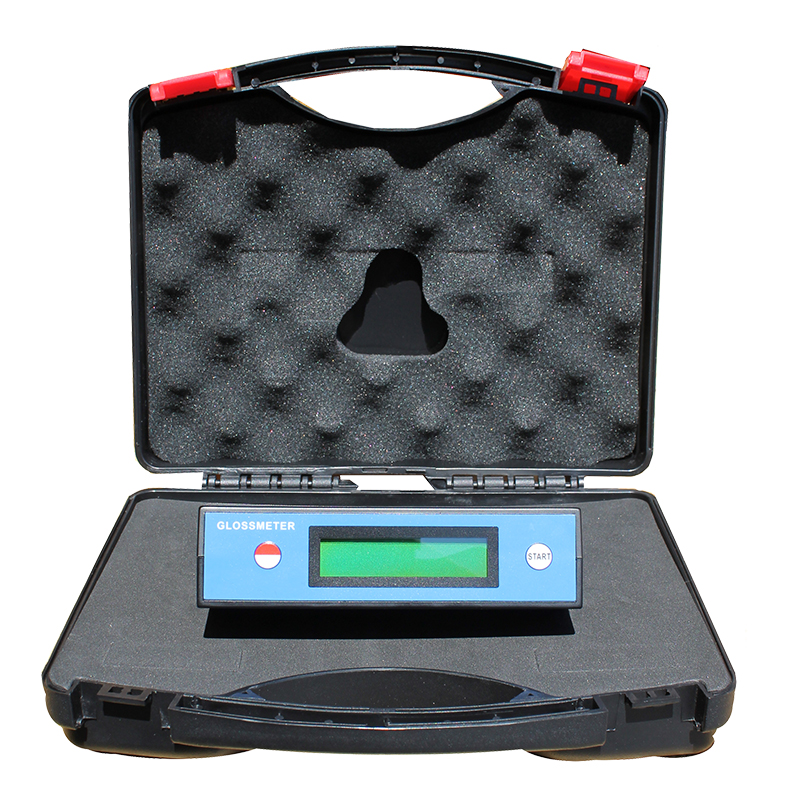

EQUIPMENT
• Plastic case:
• Plate reference standards calibration 20°and 60°
• Optical polishing cloth
| Code | Model | Measuring range | External dimensions | Weight |
|---|---|---|---|---|
| GT0187 | GLOSS-TEST 20-60-85 | 0 ÷ 199,9 gloss | 142x32x64 mm | 320 gr |
