Fast Mill
Standards
FAST-MILL modular, rapid mill instrument designed for milling of various materials in the ceramic and painting industry, in food, cosmetics, pharmaceutical industries, research laboratory, schools, etc. The milling time is regulated by means an analogic timer.

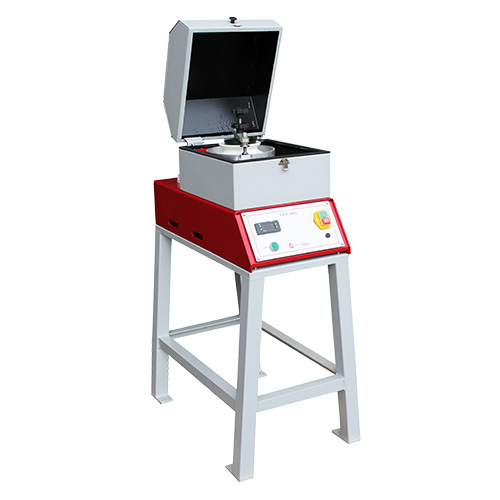

Every mill must be fitted on top or dedicated supporting frame steel to be order separately.
• FAST MILL 1,5 works only with 1,5 lt. jar
• Supporting frame is an optional,to be ordered separately
TECHNICAL SPECIFICATIONS
• Mill capacity: n° 1 jar of 0,3 -1-1,5 lt
• Digital timer
• Supply: 230 V-50 Hz single-phase (other voltage on request)
The instrument is suppled without jar and grinding charge, to be ordered a part.
| Code | Model | External dimensions | Power | Weight |
|---|---|---|---|---|
| GT2062 | FAST MILL 0,3 - 1 | 730x350x445 mm | 370 W | 48 Kg |
| GT2535 | FAST MILL 1,5 | 730x350x445 mm | 370 W | 55 Kg |
| Code | Description | Image |
|---|---|---|
| GT0528 | Grinding load (250 g) for 0,3 lt jar | Open image |
| GT0529 | Grinding load (800 g) for 1 lt jar | Open image |
| GT0530 | Grinding load (1100 g) for 1,5 lt jar | Open image |
| GT0532 | Alubit balls Ø 19 mm (qty 1 kg) | |
| GT0533 | Alubit balls Ø 25,4 mm (qty 1 kg) | |
| GT0534 | Jar 0,3 lt with cover | |
| GT0535 | Jar 1 lt with cover | |
| GT0536 | Jar 1,5 lt with cover | |
| GT0548 | Supporting frame steel painted for n° 1 FAST mill | |

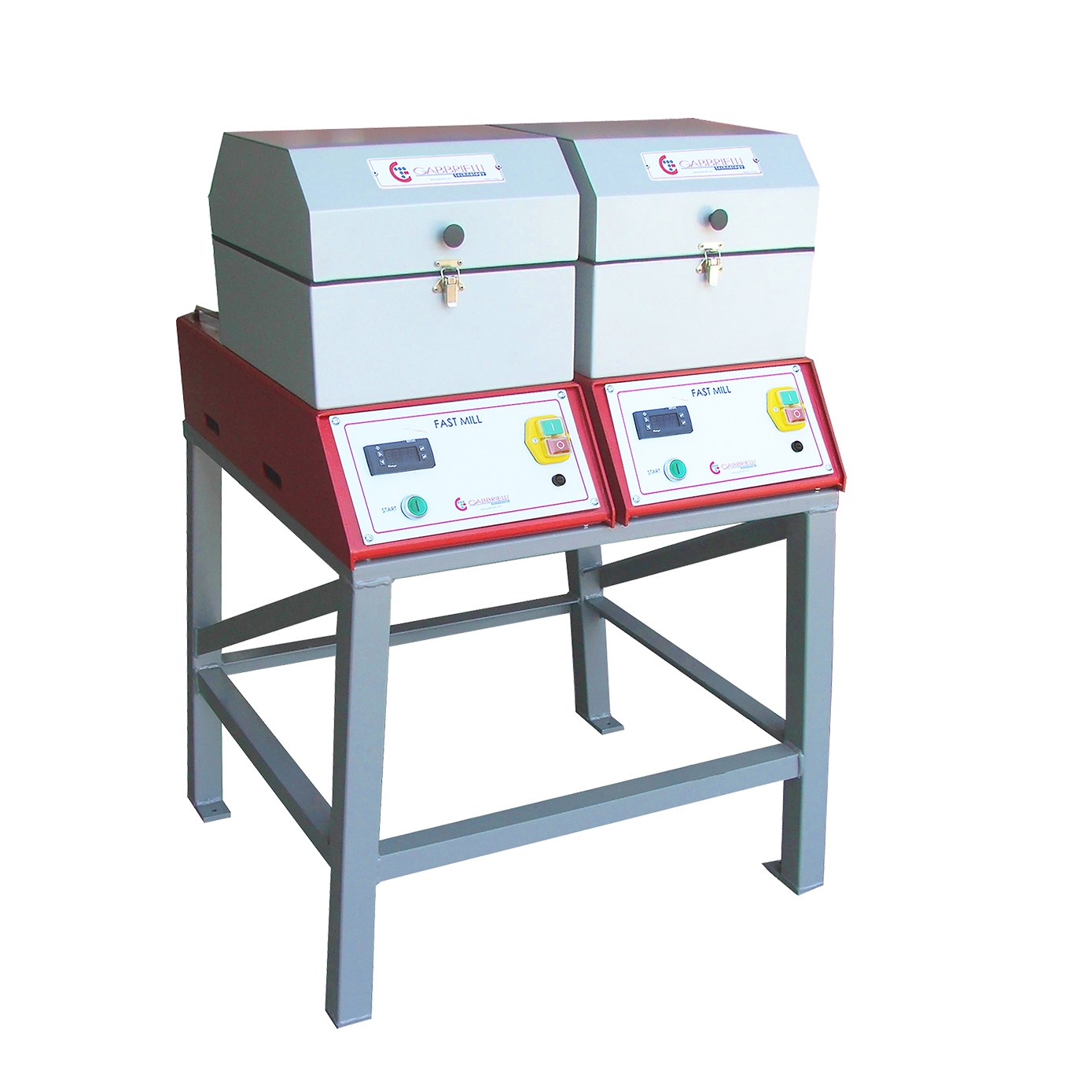

| GT0549 | Supporting frame steel painted for n° 2 FAST mills | |
| GT0550 | Supporting frame steel painted for n° 3 FAST mills | |

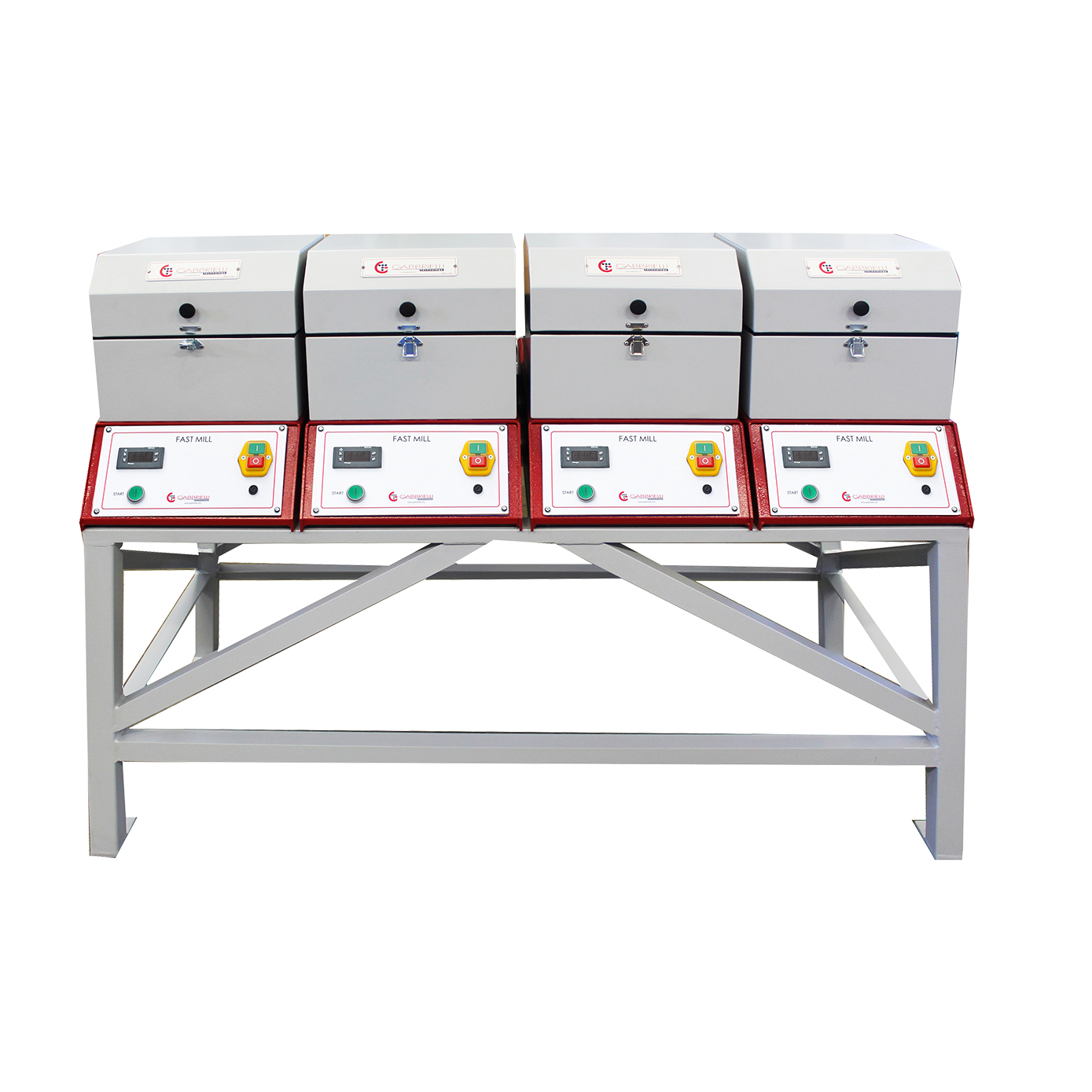

| GT0551 | Supporting frame steel painted for n° 4 FAST mills | |
| GT0531 | Alubit balls Ø 13 mm (qty 1 kg) | Open image |
