Dimension Digital
Categories

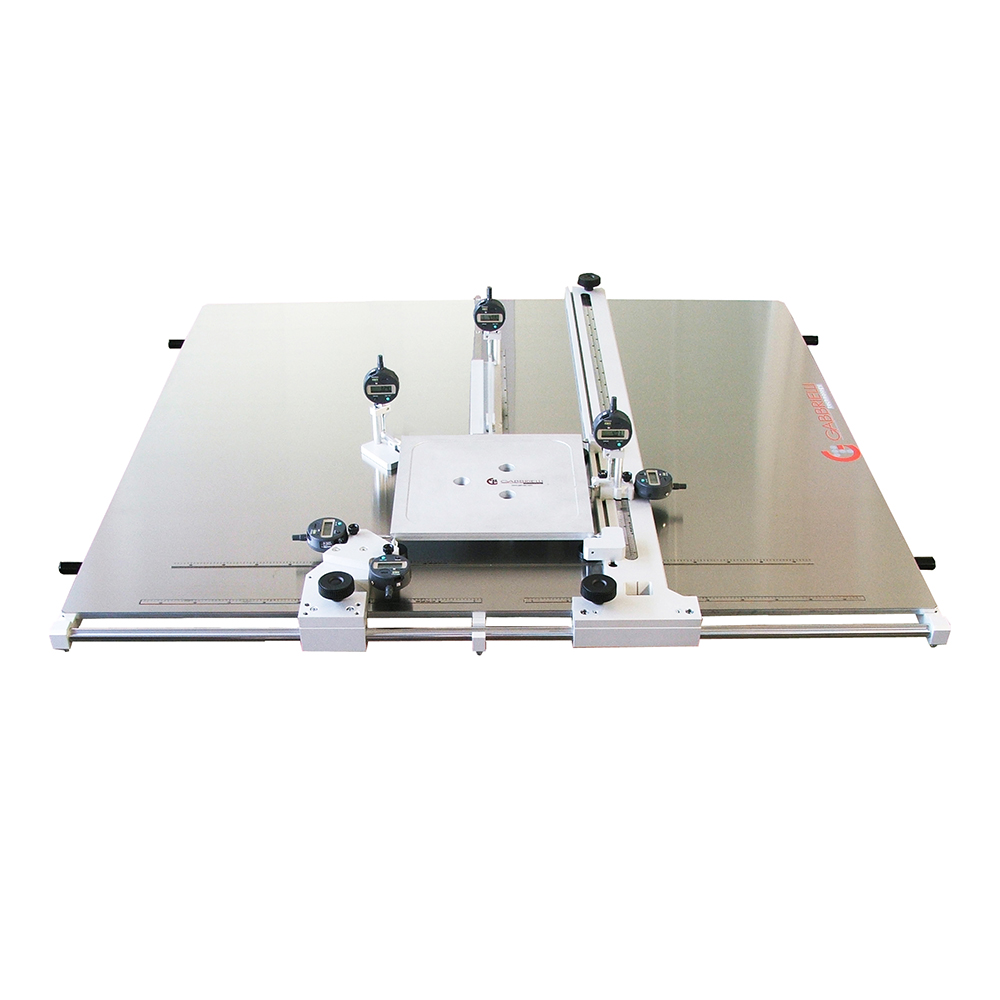

DimensionLaboratory instrument for determining the dimensional characteristic of the tiles (lenght, ortogonality, glide, warping, straightness of sides, curvature/bending of the sides). The measurements are done as difference from calibration plate and ceramic tile. Visual data collection through analog gauges.
TECHNICAL SPECIFICATIONS
• Nr.6 digital gauge, readability 0,01 mm
EQUIPMENT
• Nr.6 digital gauges,readability 0,01 mm
• Set of 3 support
• Metal cleaner with cloth
| Code | Model | Tile format | External dimensions | Weight |
|---|---|---|---|---|
| GT1445 | DIMENSION-100 | 40x40 ÷100x100 mm | 550x500x250 mm | 60 kg |
| GT0360 | DIMENSION-650 | 80x80 ÷ 650 x 650 mm | 1000x900x290 mm | 85 kg |
| GT1438 | DIMENSION-950 | 80x80 ÷ 950 x 950 mm | 1360x1170x250 mm | 110 kg |
| GT1213 | DIMENSION-1300 | 100x100 ÷1300x1300 mm | 1900x1600x750 mm | 250 kg |
| GT1050 | DIMENSION-1600 | 100x100 ÷1600x1600 mm | 1950x1900x750 m | 290 kg |
| Code | Description | Image |
|---|---|---|
| GT0383 | Isothickness | Open image |
| GT0357 | 1 Set of 3 support for different thickness | Open image |
| GT1394 | Set of 3 supports H = 30 mm | Open image |
| GT1301 | Kit upgrade in Dataplucometro | Open image |
| GT1334 | Kit full upgrade | Open image |
| GT2108 | Metal cleaner with cloth | Open image |
| GT0356 | Digital gauge, accuracy 0,01 mm | Open image |
| GT0357 | 1 Set of 3 support for different thickness | Open image |
