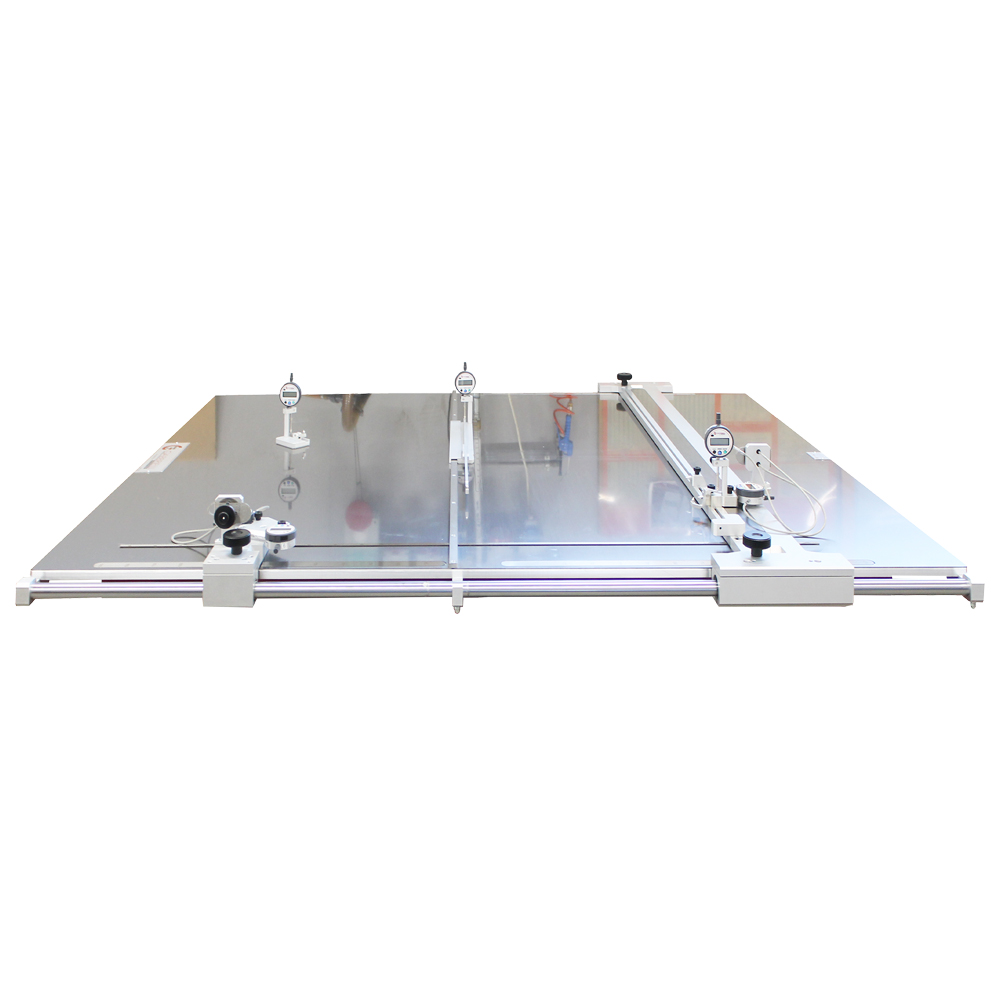

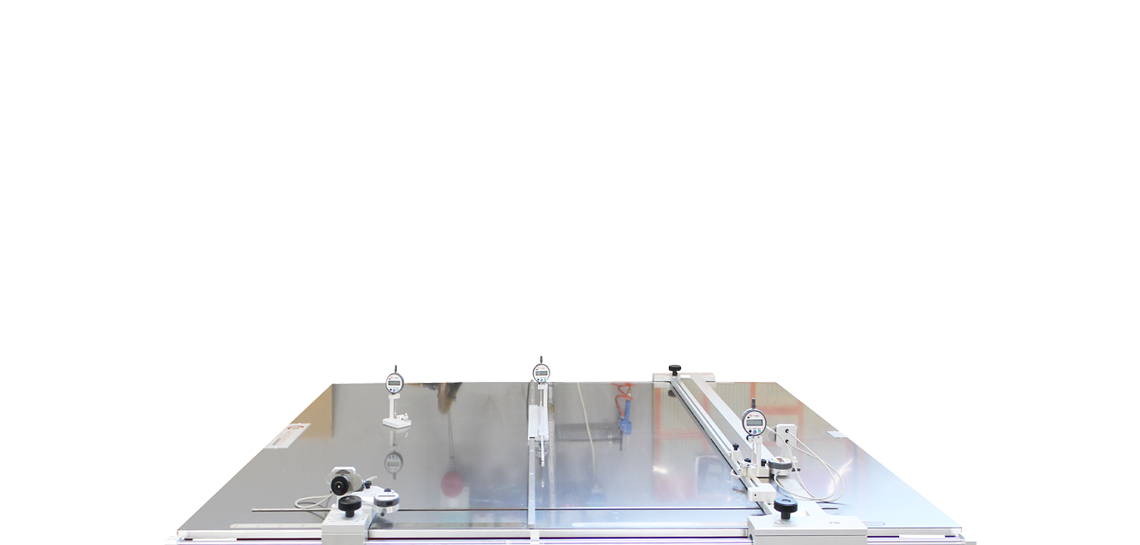

DimensionLaboratory instrument for determining the dimensional characteristic in the tiles (lenght, hortogonality, glide, warping, straightness of sides, curvature/bending of the sides). The measuring takes place by difference between the reference digital gauge calibration plate and the ceramic tiles. The instrument is designed for tiles from 80×80 up to 1600 x 1600 mm and thickness from 4 up to 15 mm.
TECHNICAL SPECIFICATION:
• Digital gauge, accuracy 0,01 mm
• Measuring dimensions: from 80×80 up to 1600×1600 mm
• Measuring thickness: from 4 up to 15 mm
EQUIPMENT:
• nr.6 analogical gauges readability 0,01 mm
• Kit supports for tiles thickness from 4 up to 15 mm
| Code | Model | Tile format | External dimensions | Weight |
|---|---|---|---|---|
| GT0358 | DIMENSION DSQ-650 ANALOGICAL | 80x80 ÷ 650x650 mm | 1000x900x250 mm | 40 kg |
| GT0389 | DIMENSION DSQ-850 ANALOGICAL | 80x80 ÷ 850x850 mm | 1200x1100x250 mm | 55 kg |
| GT1212 | DIMENSION DSQ-1300 ANALOGICAL | 80x80 ÷ 1300x1300 mm | 1900x1600x750 mm | 160 kg |
| GT1049 | DIMENSION DSQ-1600 ANALOGICAL | 80x80 ÷ 1600x1600 mm | 1950x1900x750 mm | 300 kg |
| Code | Description | Image |
|---|---|---|
| GT0383 | Isothickness | Open image |

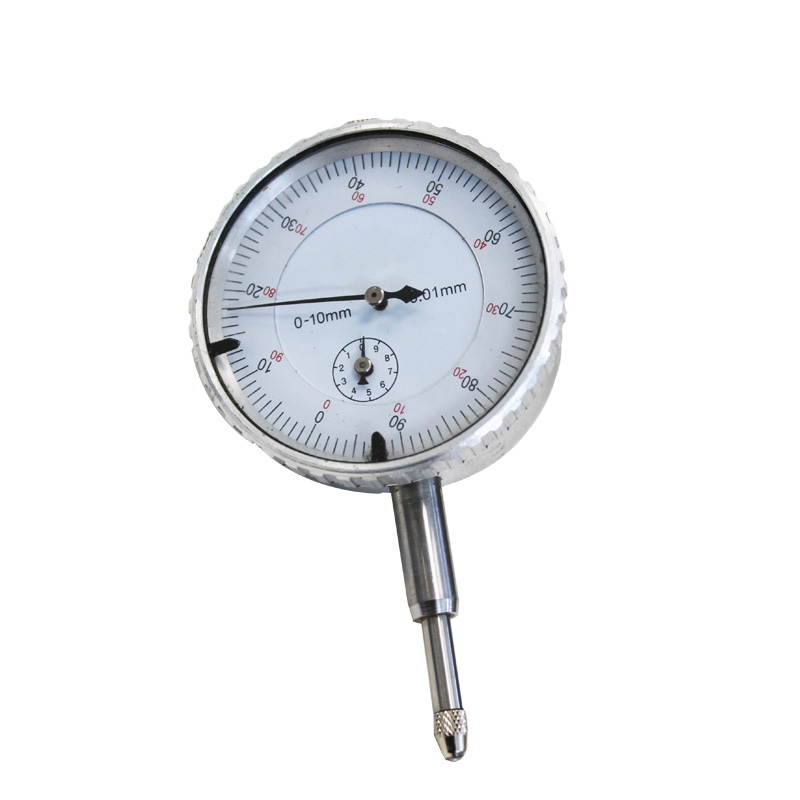

| GT0359 | Analogical gauge 0,01 mm | Open image |
| GT1394 | Set of 3 supports H = 30 mm | Open image |
| GT1301 | Kit upgrade in Dataplucometro | Open image |
| GT1334 | Kit full upgrade | Open image |
| GT2108 | Metal cleaner with cloth | Open image |
