Dilatometer GT-1300
Categories
DilatometryStandards

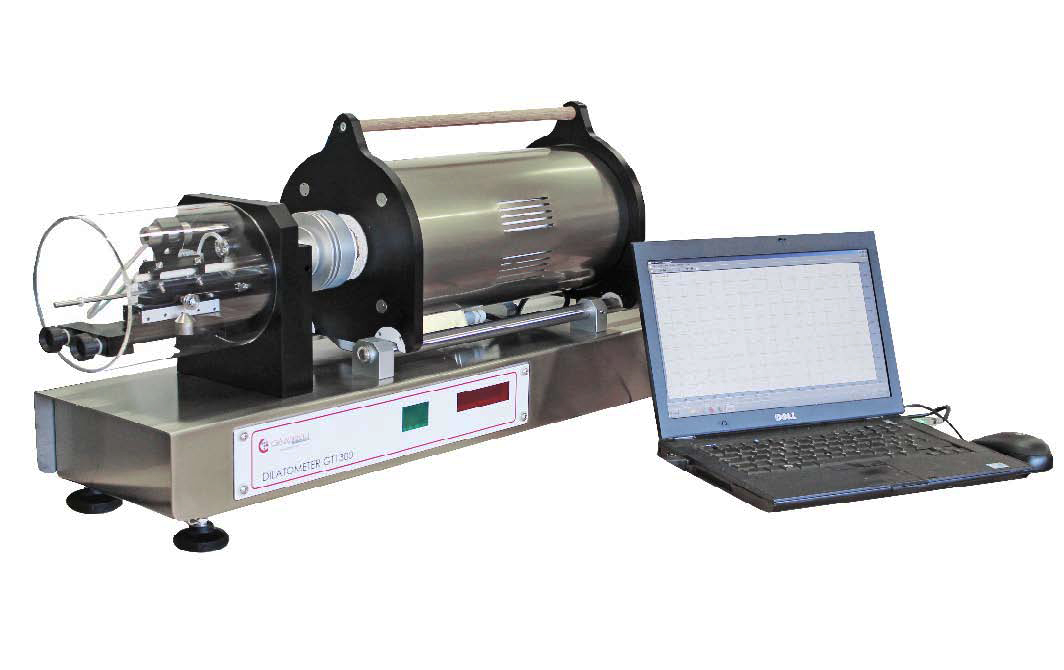

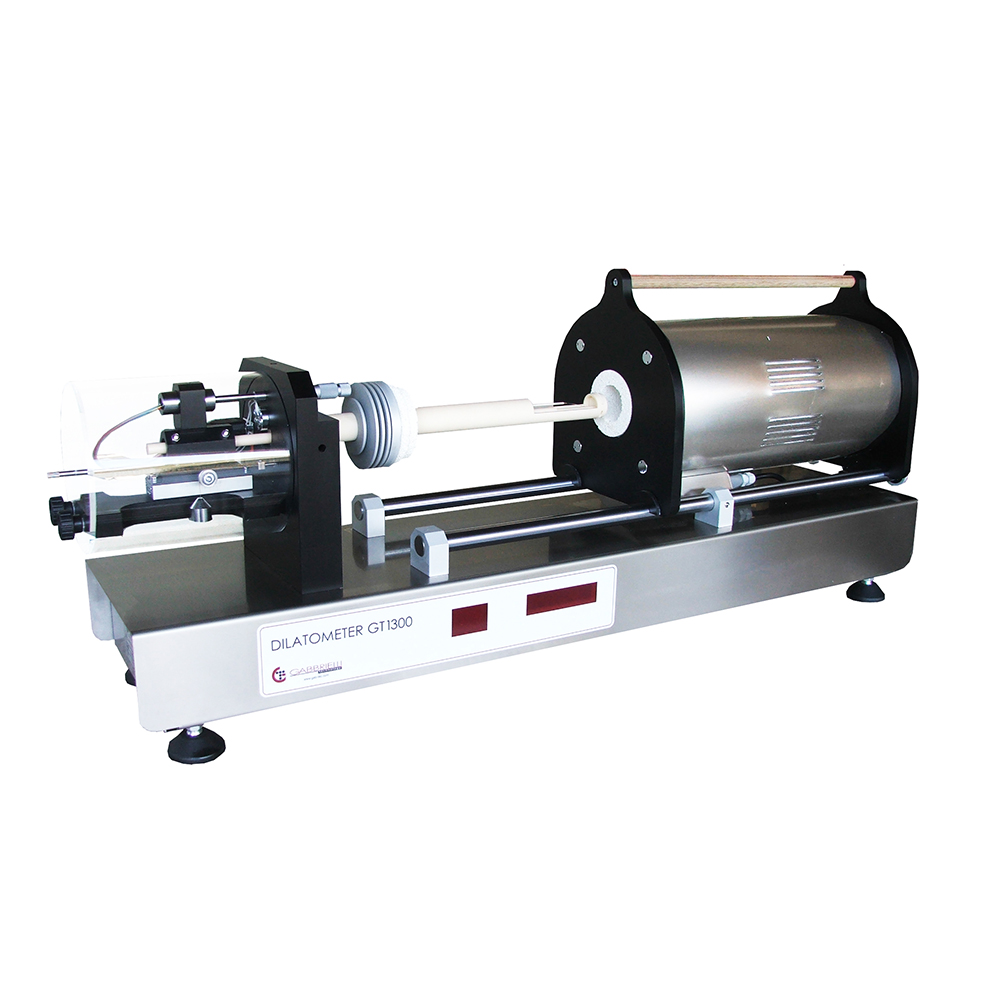

Complete and reliable measuring instrument for laboratory tests, research and control on ceramic, glass, metal, plastics, polymers, composite, etc. The measuring system consisting of a sample holder with push rod that transmit the thermal expansion of the specimen to an LVDT transducer. By means a PC with software “DILATA” for Windows 7/Vista and colour printer, allow the customer to full operate on the Dilatometer 1300.
The software “DATALOG” enable the following functions:
– Program thermal cycle
– Recording of the dilatation test
– View and printing graphic data
– PLC: Percent Linear Change versus temperature
– DCE: Differential Coefficient of Expansion
– ACE: Average Coefficient of Expansion
– COE: Coefficient of Expansion between two point
– Zoom selected portion of the curves
– Compare on video and print more curves
– Data transfer to other applications
TECHNICAL SPECIFICATIONS
• Max temperature: 1300 °C
• Thermocouple S type (Pt-Pt-10%Rh)
• Sample reference: alumina
• Accuracy with quartz measuring system: ± 0,9 %
• Accuracy with alumina measuring system: ± 1,2 %
• LVDT Range: 5 mm
• LVDT contact pressure: 30 g. or more
• Max heating rate: 30 °C / min
• Sample size: L=50 mm (on demand L=25 mm x )
• Supply: 240 V – 50/60 Hz single phase
EQUIPMENT
• Dilatometer notebook with O.S Windows, software, DILATA and colour printer
| Code | Model | External dimensions | Power | Probe support | Weight |
|---|---|---|---|---|---|
| GT1057 | DILA GT-1300 | 1250x360x430 mm | 1,25 kW | Allumina | 25 kg |
| Code | Description | Image |
|---|---|---|
| GT0329 | kiln 1300 °C for dilatometer GT1057 | Open image |
| GT1123 | Alumina measuring system | Open image |
| GT1258 | Thermocouple S | Open image |
| GT1548 | Alumina sample holder | Open image |
| GT1549 | Alumina Push-Rod | Open image |
| GT1550 | Alumina circular sector support sample | Open image |
| GT2105 | Electical Precision Tile Cutter | Open image |
| GT0194 | Mini tile cutter (electrical) | Open image |
| GT2011 | Dilatometer Precision Cutting Specimen DCT | Open image |
