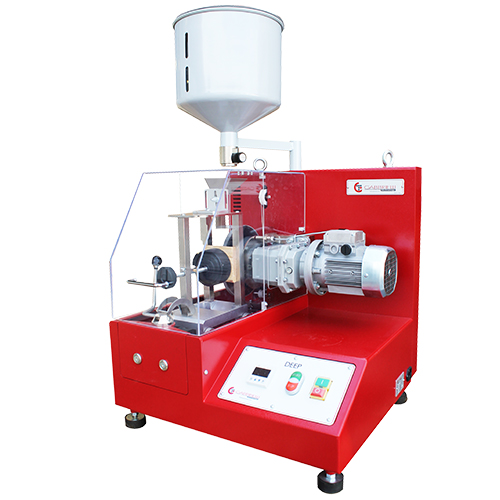

Abrasimeter Deep Unglazed

Standards

EN 1344 EN 14617-4 ISO 10545-6 UNE 127024:1999 EX CSTB Cahier 3778 Annexe 2

Laboratories

Ceramic Tiles Lab Natural Stones Agglomerates Lab

Laboratory instrument to determine the resistance to deep abrasion in the unglazed ceramic tiles obtained by means a steel disc Ø 200×10 mm and abrasive material – as corundum grain size F80 – that during the test falls between the disk and the specimen.
– The instruments are calibrated according to the UNI EN ISO 10545-6
– Other calibration on demand

TECHNICAL SPECIFICATIONS
• Steel structure powder epoxy painted
• Plexiglas safety protection
• Control flow abrasive outlet: Mase according to the standard
• Steel disc Ø 200 x 10 mm
• Hardness disc made according to the standard
• Supply: 230 V – 50/60 Hz single phase (other voltage on request)
• Electronic counter
• Maximum size of the specimen: 180x180x80 mm
• Ready for connection to a vacuum cleaner

EQUIPMENT
• Calibration plate by transparent fused silica 100x100x3 mm
• 5 Kg Corundum (aluminium fused oxide) white,grain size F80

Code	Model	External dimensions	Power	Weight
GT0109	ABRASIMETER DEEP UNGLAZED	560x620x1000 mm	0.5 kW	80 Kg

Code	Description	Image
GT1367	Pack of 25 kg Corundum (aluminium fused oxide) white, grain size F80	Open image
GT1722	Kit UNI EN 14617-4
GT0110	Calibration plate by transparent fused silica 100x100x3mm	Open image
GT0111	Steel disc Ø 200 x 10 mm	Open image
GT0121	Conversion kit from DEEP UNGLAZED to DEEP STONE	Open image
GT0343	Digital caliper DC-150 (lenght 150 mm)	Open image
GT1316	Kit for variation in number of revolutions
