Abrasimeter Deep Stone

Standards

EN 1338 EN 1339 EN 1342 EN 14157-2017

Laboratories

Natural Stones Agglomerates Lab Tableware lab

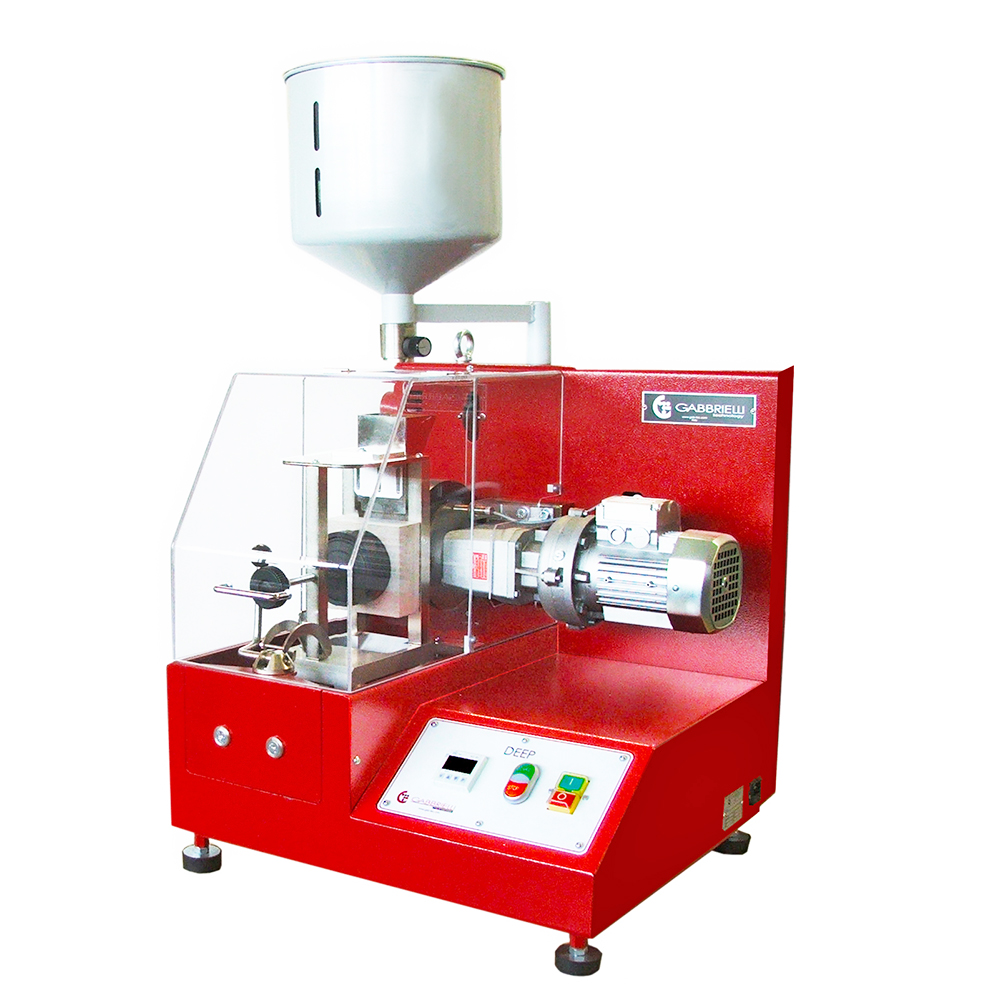

Laboratory instrument to determine the resistance to deep abrasion in cement, concrete and natural stone obtained by means a steel disc Ø 200 x 70 mm and abrasive material as corundum grain size F80 – that during the test falls between the disc and the specimen.
The instrument is calibrated according to the above references standards.

TECHNICAL SPECIFICATIONS
• Steel structure powder epoxy painted
• Plexiglas safety protection
• Control flow abrasive outlet: Mase according to the standard
• Steel disc Ø 200 x 70 mm
• Hardness disc made according to the standard
• Supply: 230 V – 50/60 Hz single phase (other voltage on request)
• Electronic counter
• Maximum size of the specimen: 180x180x80 mm
• Ready for connection to a vacuum cleaner

EQUIPMENT

• Calibration plate MCS secondary 115x115x50 mm
• 5 kg Corundum (aluminium fused oxide) white, grain size F80

Code	Model	External dimensions	Power	Weight
GT0112	ABRASIMETER DEEP STONE	560x620x1000 mm	0.5 kW	80 Kg

Code	Description	Image
GT0114	Steel disc Ø 200 x 70 mm	Open image
GT0122	Conversion kit from DEEP STONE to DEEP UNGLAZED	Open image
GT0343	Digital caliper DC-150 (lenght 150 mm)	Open image
GT1316	Kit for variation in number of revolutions
GT1367	Pack of 25 kg Corundum (aluminium fused oxide) white, grain size F80	Open image
GT1879	MCS Secondary Calibration plate 115x115x50 mm	Open image
