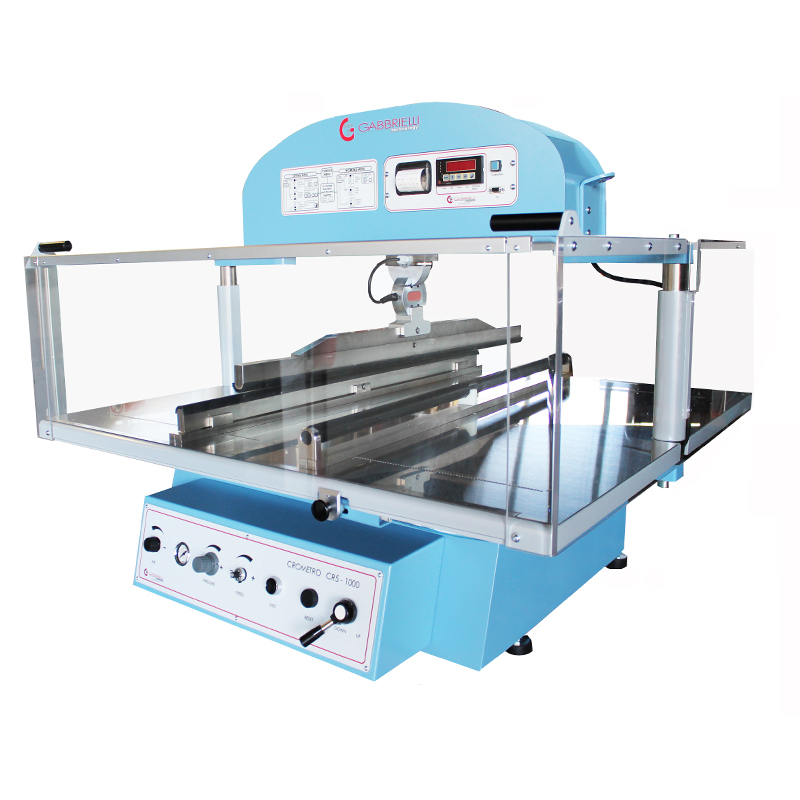

Crometro CR5 1000
Laboratories
Ceramic Tiles LabPrecision instrument for the measurement of the breaking force and flexural tensile strength of the ceramic tiles according to the Standards. The Crometro is composed of the base that controls the force that is applied to the sample and a rail with a load cell for reading the applied load. The working bench with the adjustable and swinging tiles supports is pushed upwards. During the stroke, which is adjustable, the tile comes across with the upper central blade with the load cell on it that is part of the crossbeam. Adjustable feed speed.
TECHNICAL SPECIFICATIONS
• Pneumo hydraulic operation
• Lower and upper knives according to the standard with the rubber hardness IHRD 50±5
• Max applied pressing force 1000 kg
• Possibility of using two load cells one for high load 1000 kg and one for low load 100 kg
• High precision load adjustment application
• Sample test: from 100×100 up to 650×650
• Direct reading of the applied load and displaying of the maximum reached value in kg or daN
• Measurement by means of electronic precision cell
• Resolution: 100 g for high load (0-1000 kg), 10 g for low load( 10 kg)
• Storing of tiles size
• Automatic calculation of the flexural tensile strength modulus in N/mm²
• 5 digit display showing data on
• Operating pressure: 8,2 bar
• Internal printer
• Supply: 230 V 50/60 Hz single phase
• Workload 1000 Kg
EQUIPMENT
• Base with transom, electronic unit with display and load cell 0 -1000 kg
• Serial exit for PC
• Bottle of oil (1 Lt)
| Code | Model | Tile format | Maximum force applied | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT1425 | CROMETRO CR5 1000-650 | 100x100÷650x650 mm | 1000 Kg | 8,2 Bar | 100 W | 150 Kg |
| GT1426 | CROMETRO CR5 1000-1000 | 100x100÷1000x1000 mm | 1000 Kg | 8,2 Bar | 100 W | 280 Kg |
| Code | Description | Image |
|---|---|---|
| GT1433 | Support with knife L= 650 mm and load cell up to 100 g | |
| GT2241 | Kit knives L = 1000 mm and load cell up to 100 Kg | |
| GT1547 | Electronic microprocessor | Open image |
| GT0256 | Kit for ASTM C 648 | Open image |
| GT0257 | Load cell for tests on unfired up to 100 kg (div. by 10 g.) | Open image |
| GT0276 | Kit for test according to DIN 51030 standard | Open image |
| GT1168 | Packing of 20 thermal paper rolls for data processor (CM 400) | Open image |
| GT1701 | Kit FIRE 50 for sizes from 18 to 48 mm | Open image |
| GT1702 | Kit FIRE 100 for sizes from 48 to 95 mm | Open image |
| GT0259 | Software XY strength tester with connection cable RS-232 USB for PC | |
| GT0258 | Calibration Report Box by ACCREDIA for 1000/100 kg | Open image |
| GT0274 | Calibration Report by ACCREDIA for load cell from 100 kg | Open image |
