Autoclave GT-830
Categories
AutoclaveLaboratories

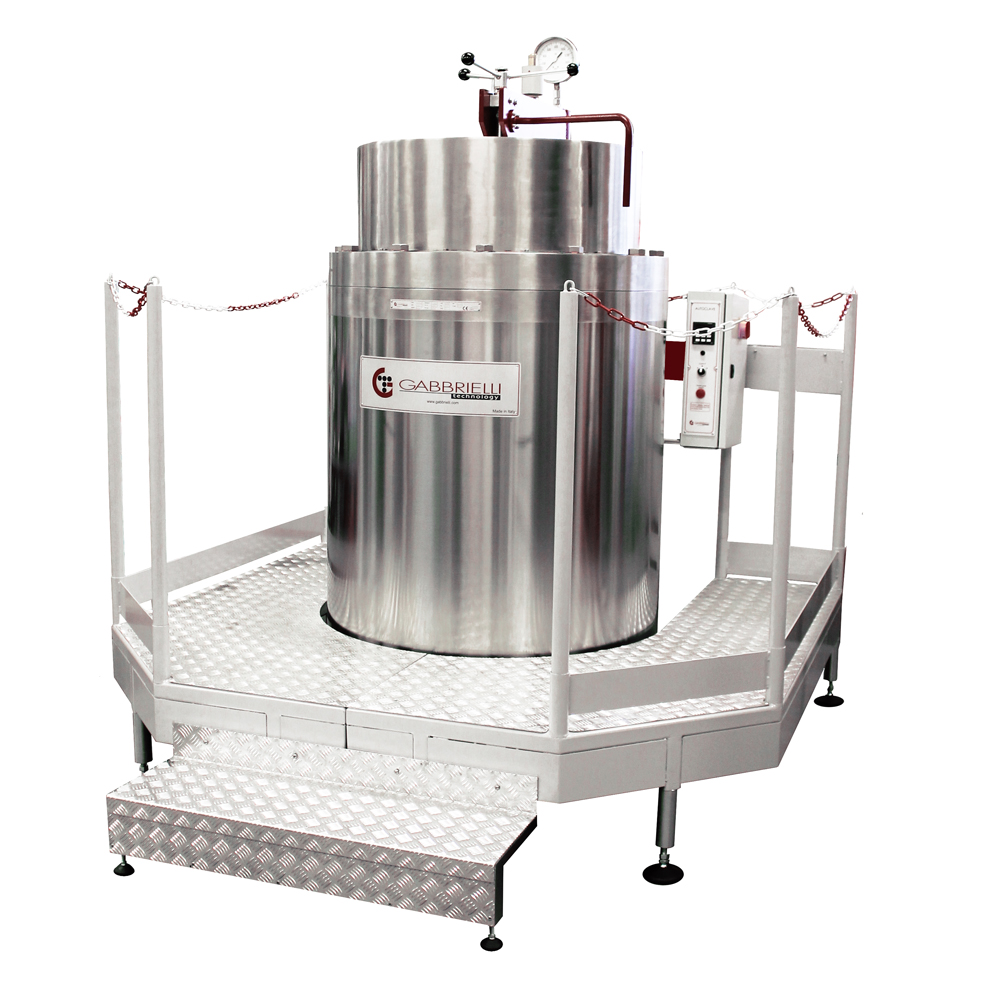

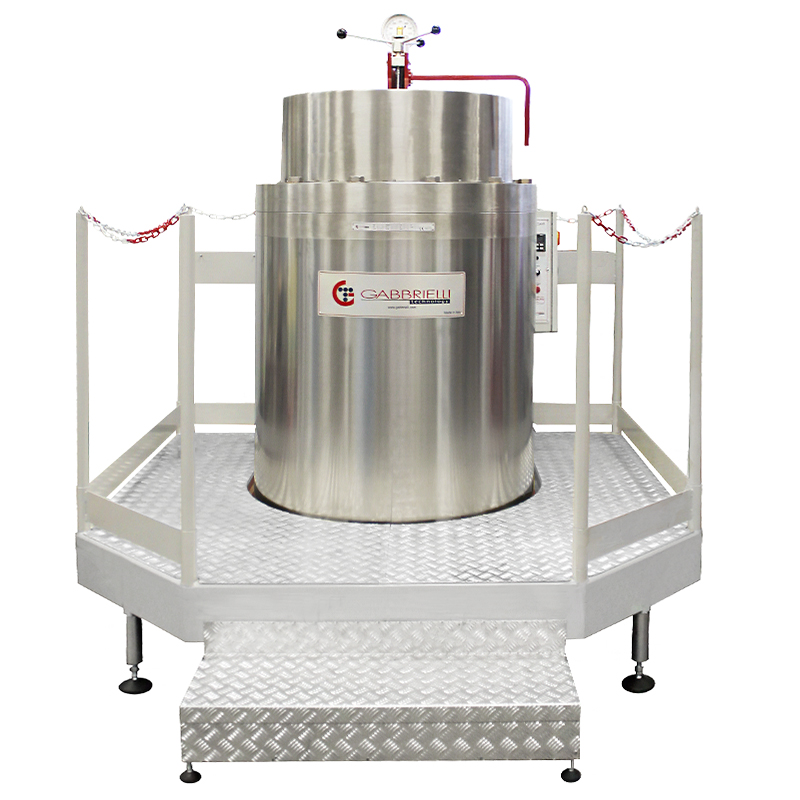

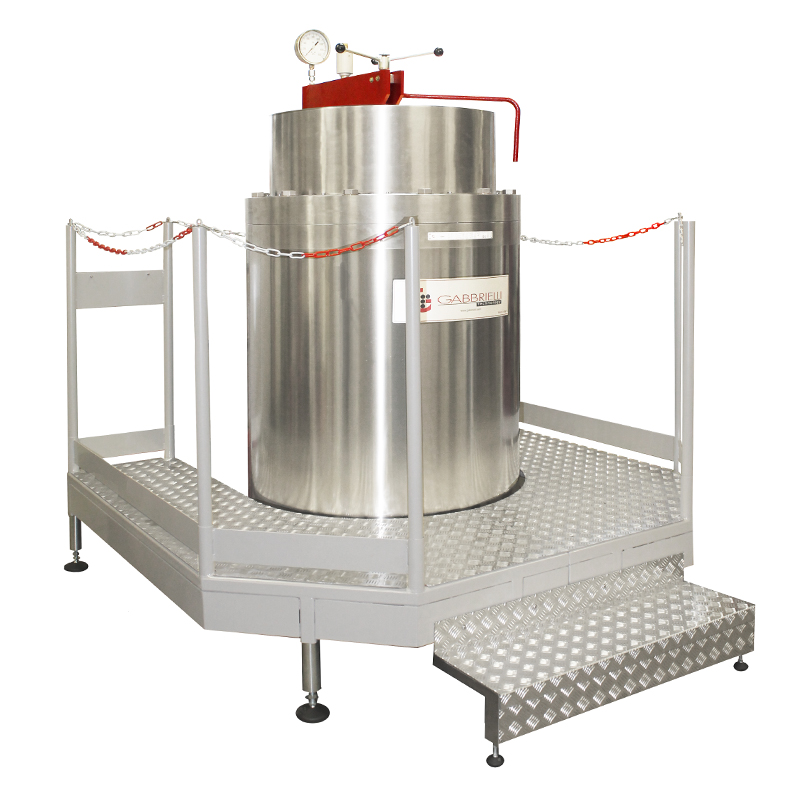

Ceramic Tiles LabAutoclave for crazing test of glazed ceramic tiles. The pressurized container is all made by stainless steel AISI-304, suitably insulated, while the supporting frame is made by steel epoxy powder painted. Thanks to the programmable microprocessor, the autoclave can work with standardized cycles (according to UNI EN ISO 10545-11 standard) and cycles customized by the customer.
– THE AUTOCLAVE IS PRODUCED ACCORDING TO 2014/68/UE PED
– ASME STANDARD ON REQUEST
TECHNICAL SPECIFICATIONS
• Test container made all stainless steel AISI-304
• Working cycles UNI EN ISO 10545-11 and customized cycles
• Electrical heating
• Cooling by coil water controlled by a solenoid valve
• Cover closing by means of screws and VITON gasket
• Supply: 400 V – 50 Hz three phases (other voltage on request)
EQUIPMENT
• Sample holder basket in AISI-304
| Code | Model | Internal dimensions | External dimensions | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT1901 | AUTOCLAVE GT 830-11 | Ø 830x830 mm | 2000x1850x2200 mm | 11 bar | 16 kW | 1200 Kg |
| Code | Description | Image |
|---|---|---|
| GT1939 | Electric resistance 16 Kw with gasket | Open image |
| GT1940 | Seal ring for cover | Open image |
| GT1971 | Safety valve 11,0 bar | Open image |
| GT0142 | Manometer 0 ÷16 bar | Open image |
| GT2702 | Electronic programmable microprocessor | Open image |
| GT1263 | Solenoid valve 11,0 bar | Open image |
| GT1284 | Pressure transducer 20 bar | Open image |
| GT1326 | Manometer 0 ÷25 bar | Open image |
| GT1649 | Pressure transducer K 11 bar for Autoclave | Open image |
| GT1972 | Safety valve 20,0 bar | Open image |
