Autoclave GT-630
Categories
AutoclaveLaboratories

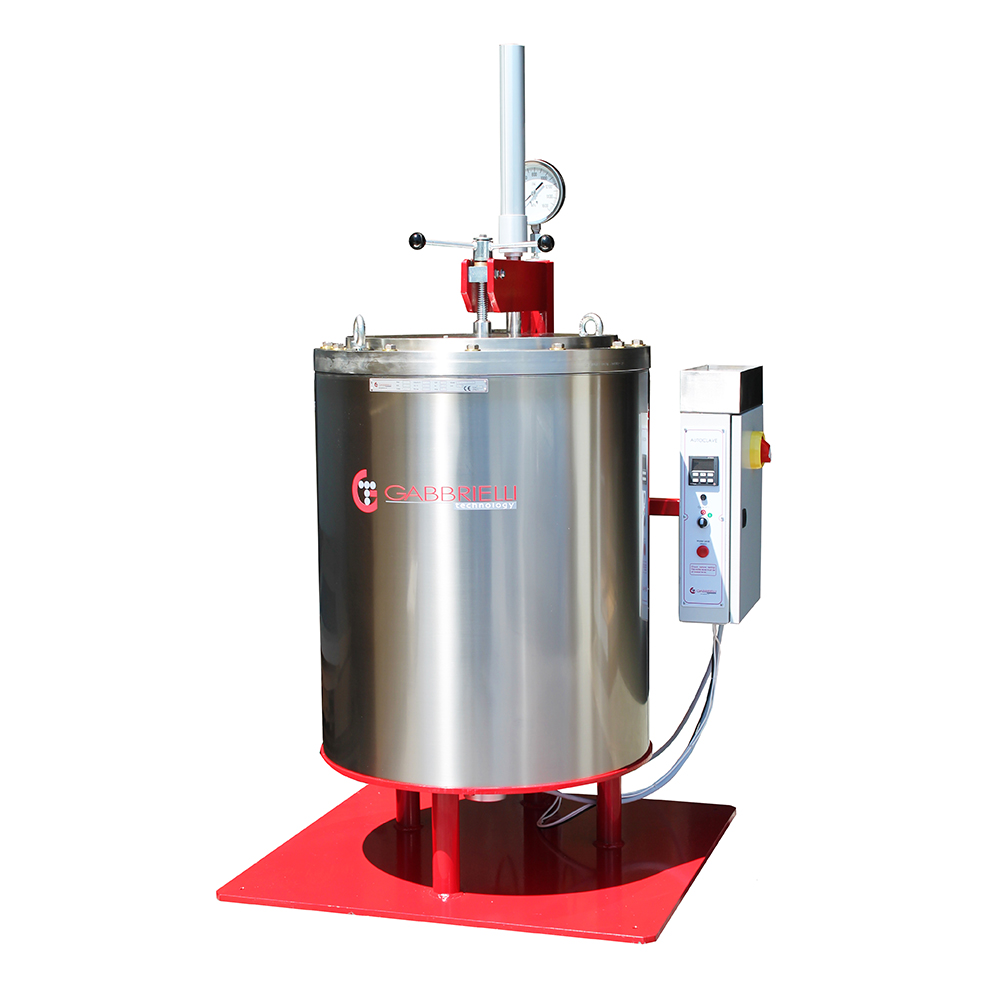

Ceramic Tiles LabAutoclave for crazing test of glazed ceramic tiles. The pressurized container is all made by stainless steel AISI-304, suitably insulated, while the supporting frame is made by steel epoxy powder painted. Thanks to the programmable microprocessor, the autoclave can work with standardized cycles (according to UNI EN ISO 10545-11 standard) and cycles customized by the customer.
– THE AUTOCLAVE IS PRODUCED ACCORDING TO 2014/68/UE PED
– ASME STANDARD ON REQUEST
TECHNICAL SPECIFICATIONS
• Test container made all stainless steel AISI-304
• Working cycles UNI EN ISO 10545-11 and customized cycles
• Electrical heating
• Cooling by coil water controlled by a solenoid valve
• Cover closing by means of screws and VITON gasket
• Supply: 400 V – 50 Hz three phases (other voltage on request)
EQUIPMENT
• Sample holder basket in AISI-304
| Code | Model | Internal dimensions | External dimensions | Max pressure | Power | Weight |
|---|---|---|---|---|---|---|
| GT1365 | AUTOCLAVE GT 630-11 | Ø 630x625 mm | 1250x1150x1600 mm | 11 bar | 12 kW | 650 Kg |
| GT1575 | AUTOCLAVE GT 630-750-11 | Ø 630x750 mm | 1250x1150x1750 mm | 11 bar | 12 kW | 700 Kg |
| GT1863 | AUTOCLAVE GT 630-11 ASME | Ø 630x625 mm | 1250x1150x1600 mm | 11 bar | 12 kW | 650 Kg |
| GT1325 | AUTOCLAVE GT 630-20 | Ø 630x625 mm | 1250x1150x1600 mm | 20 bar | 12 kW | 850 Kg |
| GT1864 | AUTOCLAVE GT 630-20 ASME | Ø 630x625 mm | 1250x1150x1750 mm | 20 bar | 12 kW | 700 Kg |
| Code | Description | Image |
|---|---|---|
| GT0142 | Manometer 0 ÷16 bar | Open image |
| GT2702 | Electronic programmable microprocessor | Open image |
| GT1263 | Solenoid valve 11,0 bar | Open image |
| GT1284 | Pressure transducer 20 bar | Open image |
| GT1326 | Manometer 0 ÷25 bar | Open image |
| GT1329 | VITON seal ring cover | Open image |
| GT1649 | Pressure transducer K 11 bar for Autoclave | Open image |
| GT1972 | Safety valve 20,0 bar | Open image |
