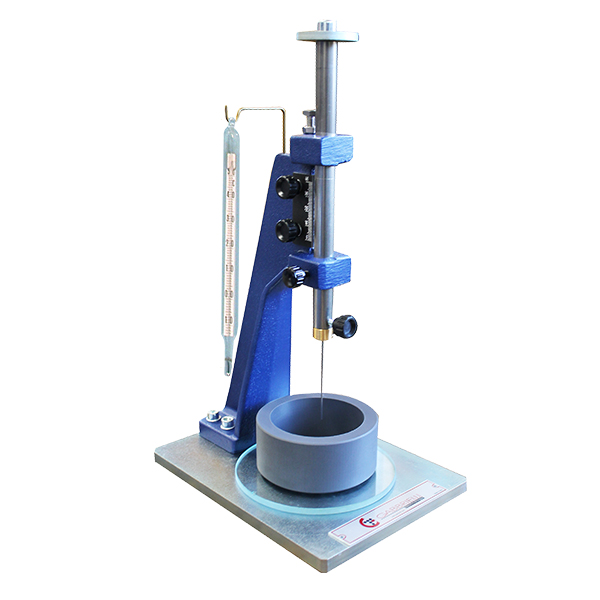

Vicat Apparatus
Vicat’s test is used to determine the amount of water required to produce a standard consistency cement paste and the setting time. The instrument consists of a metal frame, graduated scale with index, 300 g sliding probe, Ø 10 mm consistency piston, glass base plate. The test procedure consists of a needle / probe that freely falls into a concrete sample at regular intervals and in fixed positions, the depth of penetration being measured.
STANDARDS:
EN 13279-2 (GYPSUM), EN 480-2, ASTM C191, AASHTO T131, NF P15-414, NF P15-431, EN 196-3
TECHNICAL SPECIFICATIONS:
The instrument consists of a metal frame, graduated scale with index, 300 g sliding probe, Ø 10 mm consistency piston, glass base plate. Needle and mold must be ordered separately according to the selected Standard.

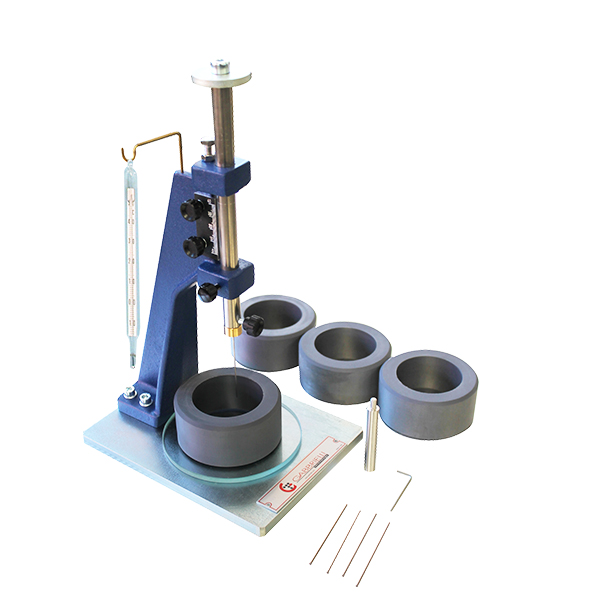

EN / ASTM EQUIPMENT (to be ordered separately):

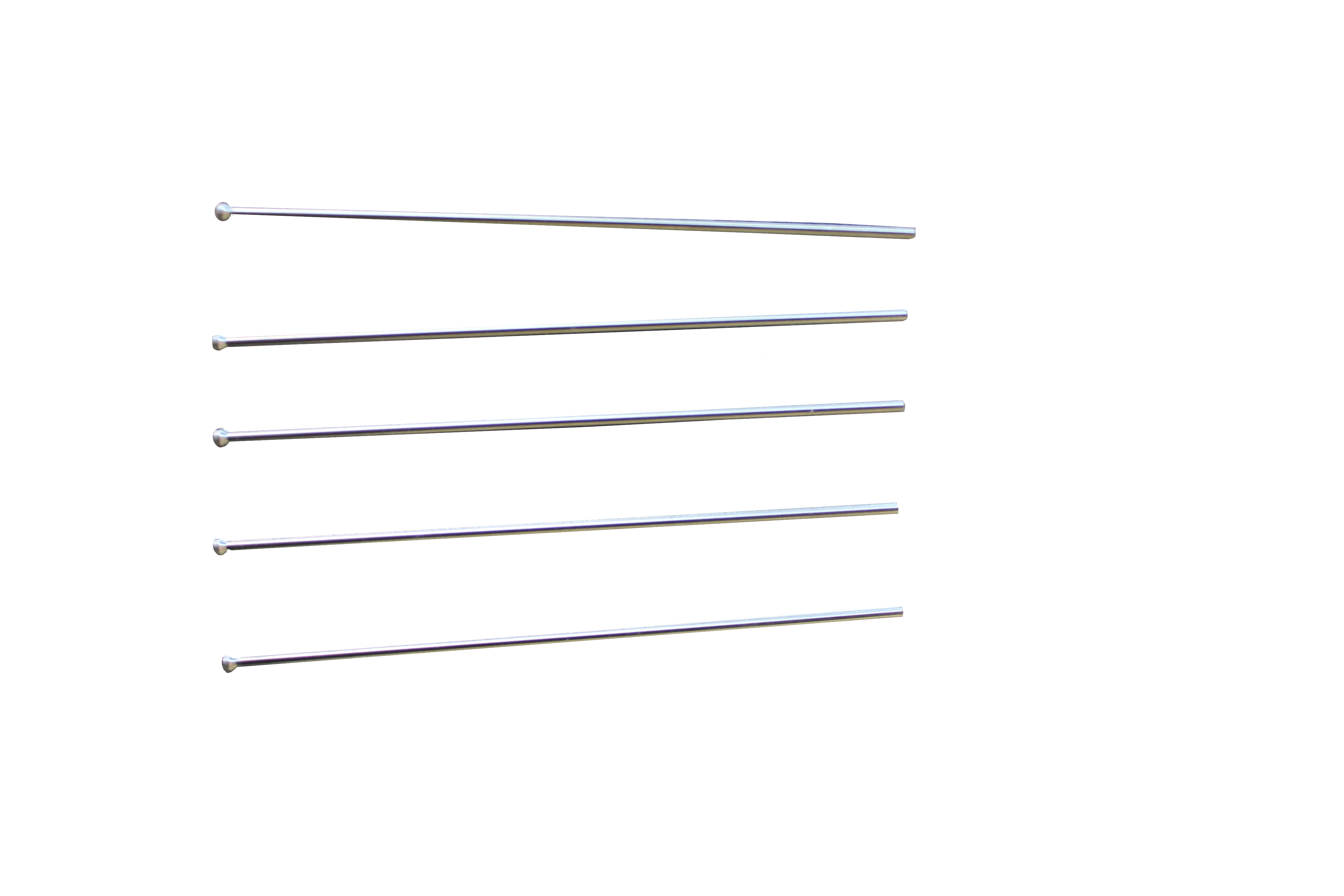

• Needle, hardened Ø 1.13 mm EN 196-3: 2005
• Needle, hardened Ø 1 mm ASTM – AASHTO

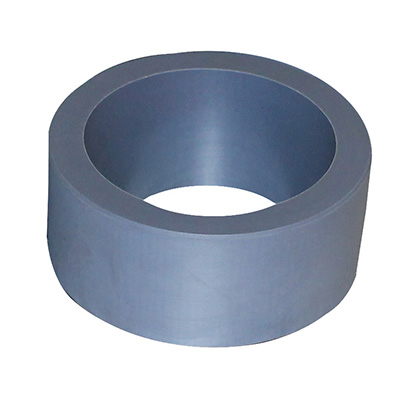

• Conical plastic mold Ø 70/80 h 40 mm (EN – NF)
• Conical plastic mold Ø 60/70 h 40 mm (ASTM – AASHTO)
BS / DIN / UNI EQUIPMENT (to be ordered separately):
• Conical plastic mold Ø 80/90 h 40 mm (UNI)
• Conical plastic mold Ø 65/75 h 40 mm (DIN)
• Conical plastic mold Ø 80/90 h 40 mm (BS)
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT1175 | VICAT | 160x200x300 mm | 5 Kg |
| Code | Description | Image |
|---|---|---|
| GT2635 | Hardened needle Ø 1.13 mm EN 196-2005 | |
| GT2636 | Hardened needle Ø 1 MM ASTM - AASHTO | Open image |
| GT2637 | Conical plastic mold Ø 70/80 H 40 mm (EN - NF) | |
| GT2638 | Conical plastic mold Ø 60/70 H 40 mm (ASTM - AASHTO) | Open image |
| GT2639 | Conical plastic mold Ø 80/90 H 40 mm (UNI) | |
| GT2640 | Conical plastic mold Ø 65/75 H 40 mm (DIN) | |
| GT2641 | Conical plastic mold Ø 80/90 H 40 mm (BS) |
