Densimeter Apparent Porosity

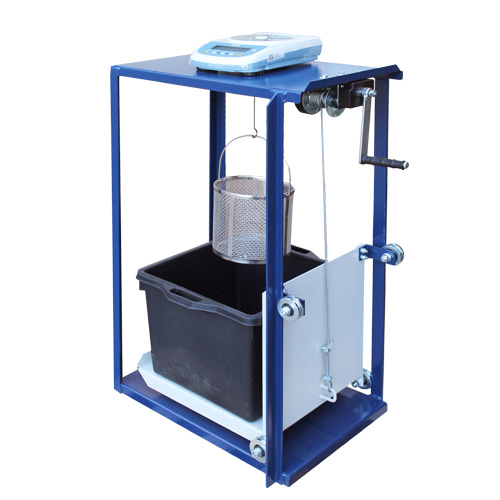

Used for specific gravity determination of tiles, concrete, aggregates, natural stone etc. To be used with a suitable electronic balance fitted with an under – hook facility. Robust steel frame made epoxy painted , it incorporates on its lower part a platform adjustable in height, holding a water container, and allowing the specific gravity test
TECHNICAL SPECIFICATIONS
• Steel frame epoxy painted
• Digital balance 6200 g. – Resolution 0,01 g.
• Cradle to test a single sample at a time for ceramic tiles 200×200 mm max
• Plastic tank 370x370x330 mm
• Height adjustable platform
EQUIPMENTS
• Digital balance 6200 g. – Resolution 0,01 g
• Plastic tank 370x370x330 mm
| Code | Model | External dimensions | Weight |
|---|---|---|---|
| GT2348 | GRAVITY DENSITY METER | 500x500x1200 mm | 50 kg |
| Code | Description | Image |
|---|---|---|
| GT2349 | Stainless steel basket for concrete cubes, cylindrical specimens, natural stone, etc. |
